Vertical turning and boring machine SEDIN 1516F1

  • Condition
  • Excellent condition

  • Technical Specifications
  • Turning diameter  1600 mm
    Table diameter  1400 mm
    Max. work-piece height  1000 mm
    Max. table load  5000 kg
    Max. horizontal ram travel  630 mm
    Max. horizontal carriage travel  975 mm
    Max. vertical ram travel  700 mm
    Max. vertical carriage travel  1000 mm
    Number of feed carriages 16
    Carriages feed range  0,07-12,5 mm/rev
    Distance between table and ram  0-1225 mm
    Fast stroke  2000 mm/min
    Main motor power  30 kW
    Speeds range  4-200 rpm
    Dimensions  3190x3360x4100 mm
    Weight  19200 kg
Vertical turning and boring machine SEDIN 1516F1
  • Views in 3 days
    401
  • Offers price
    89

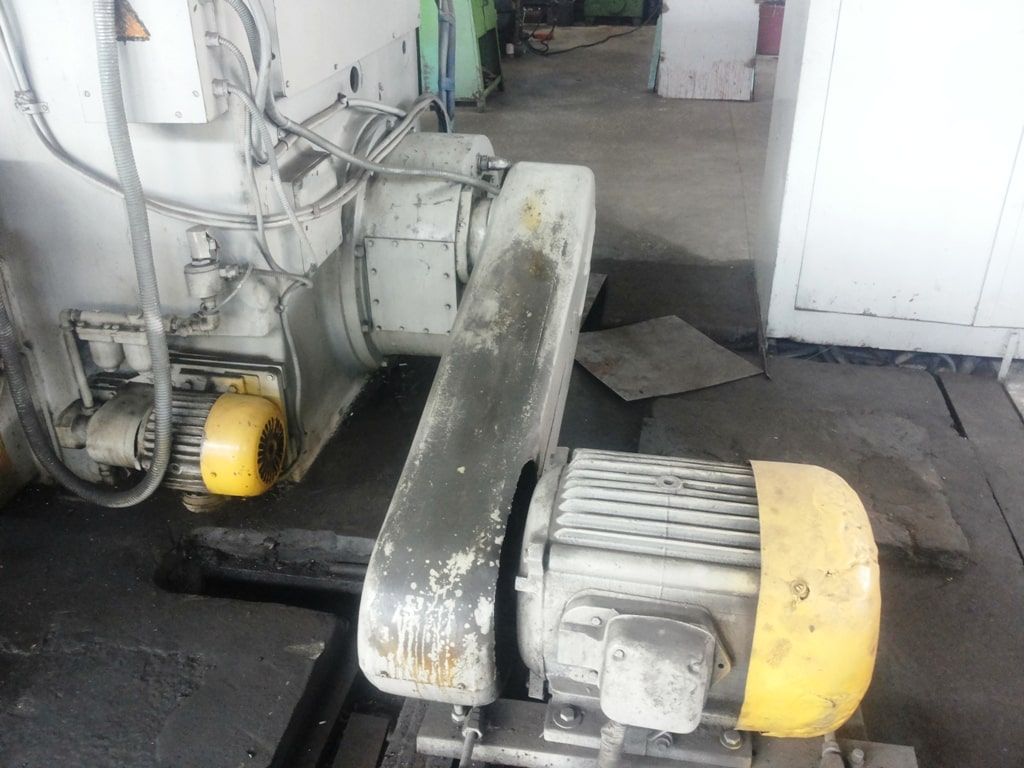

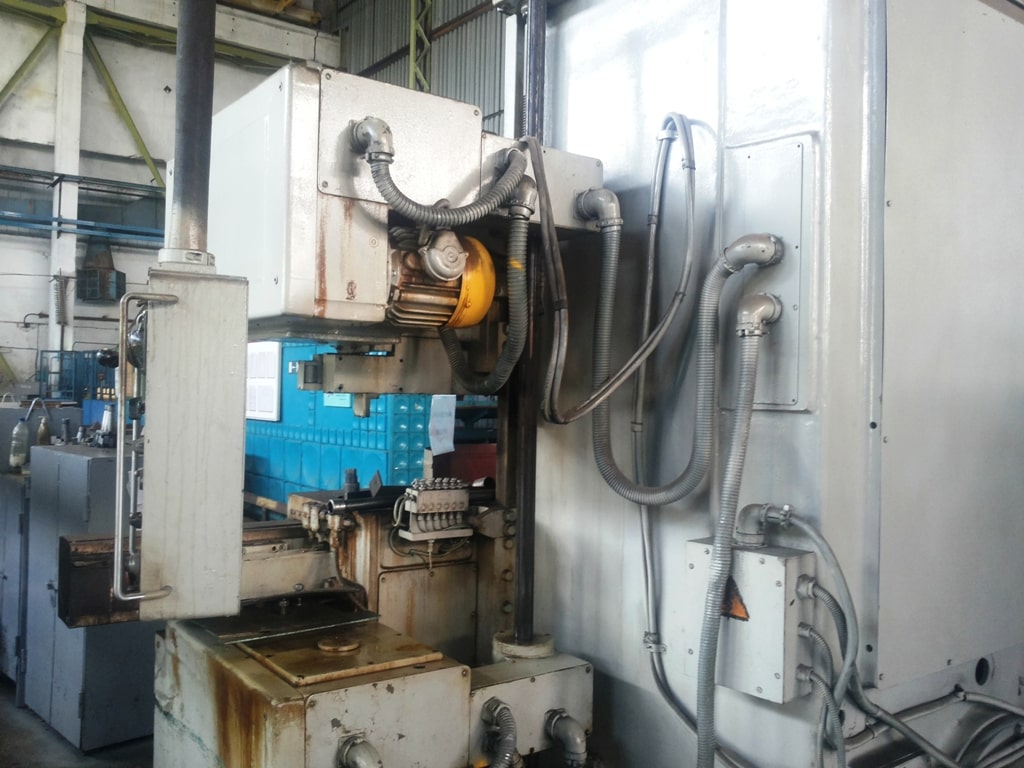

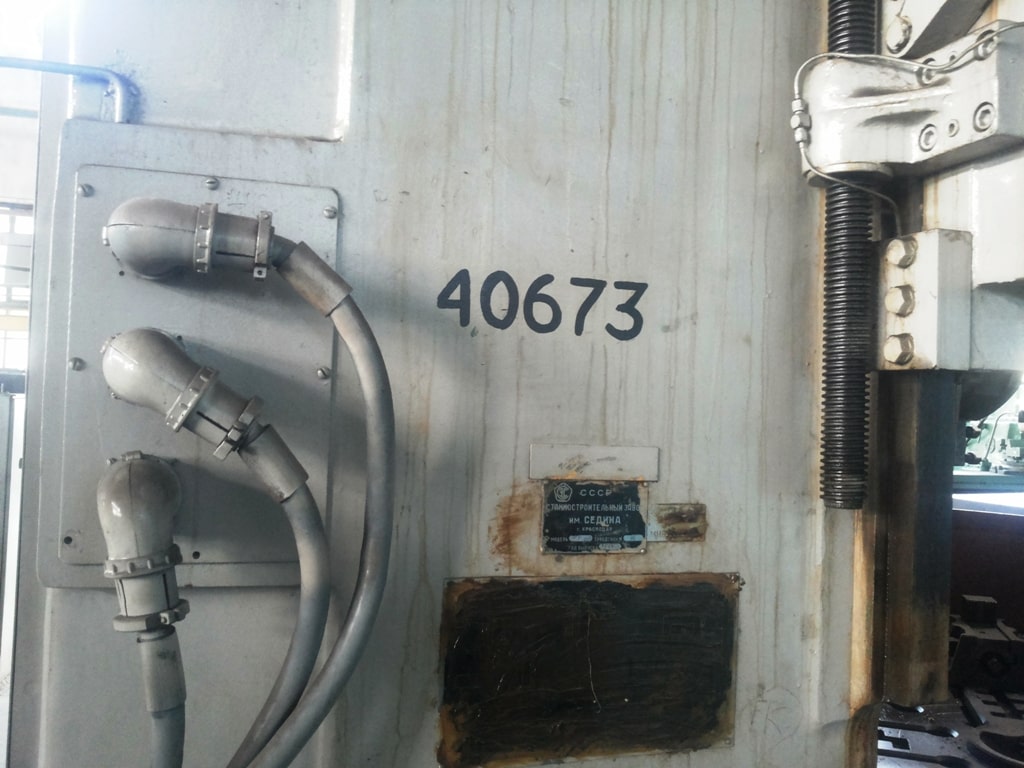

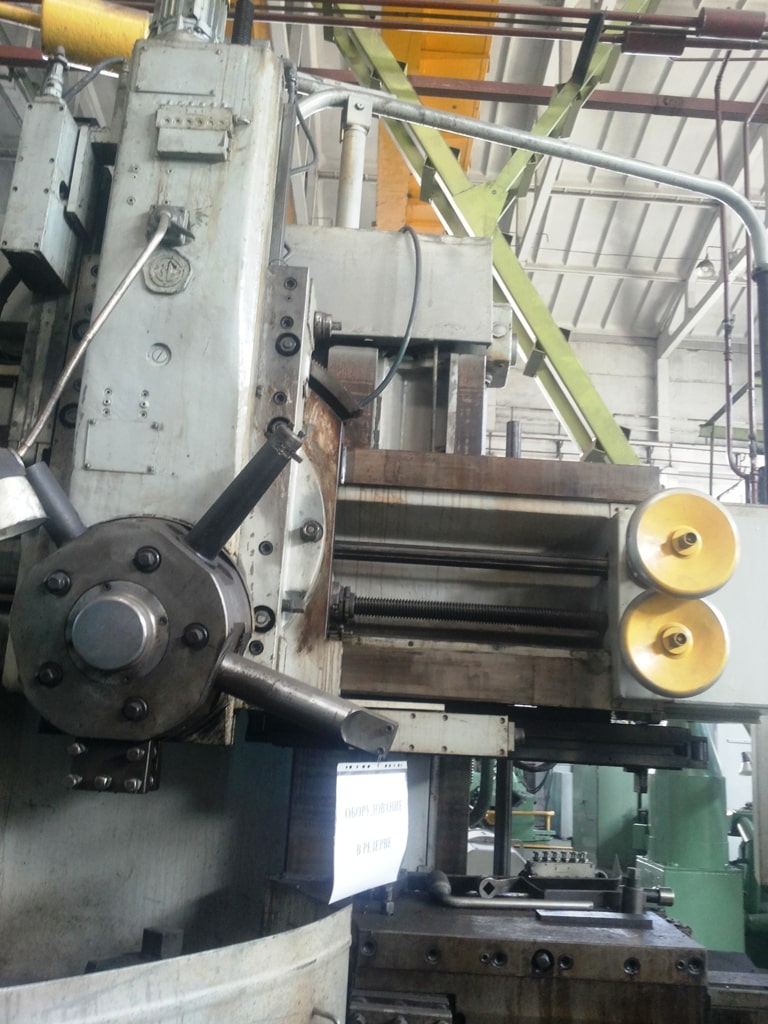

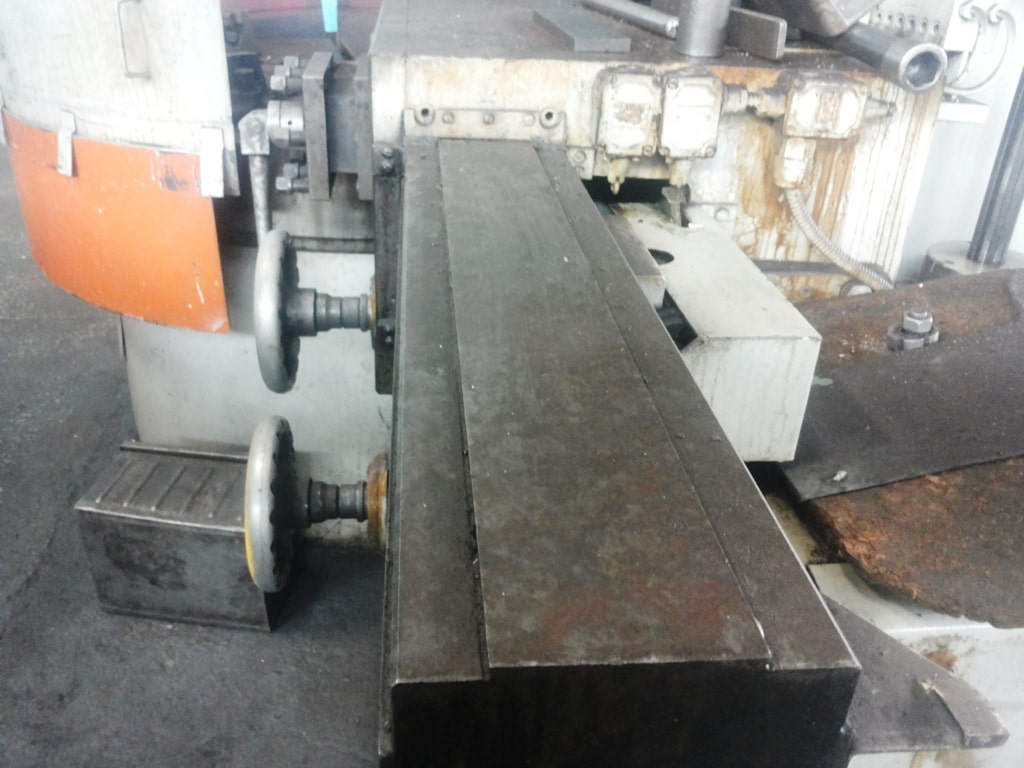

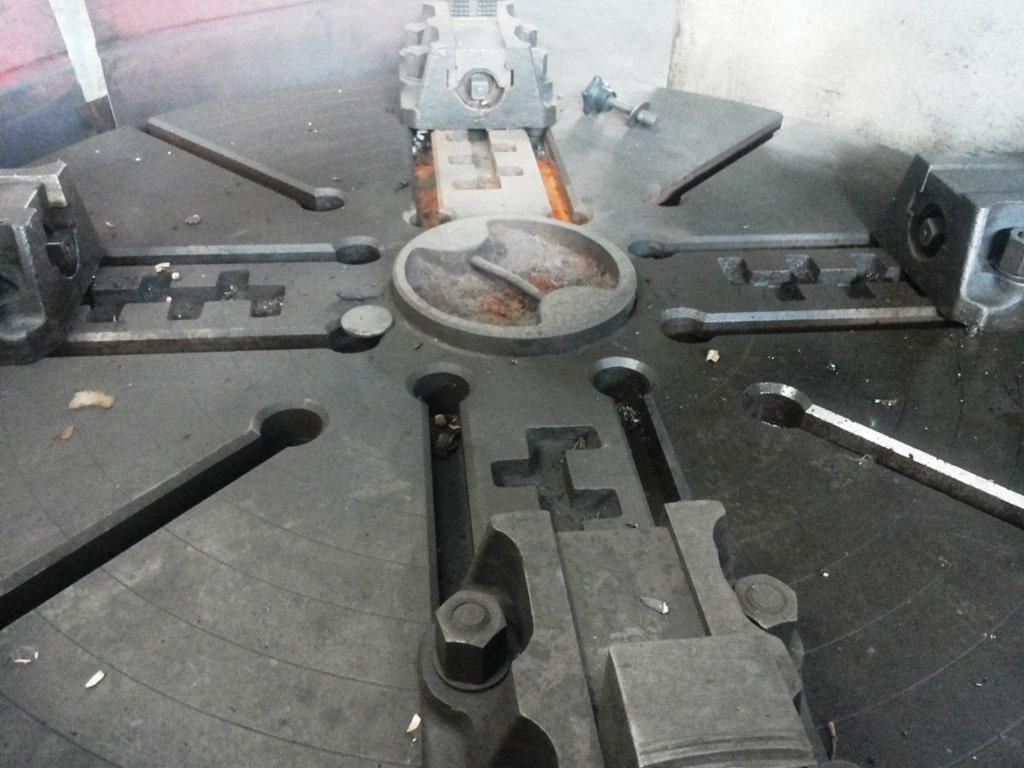

Photo - Vertical turning and boring machine SEDIN 1516F1
