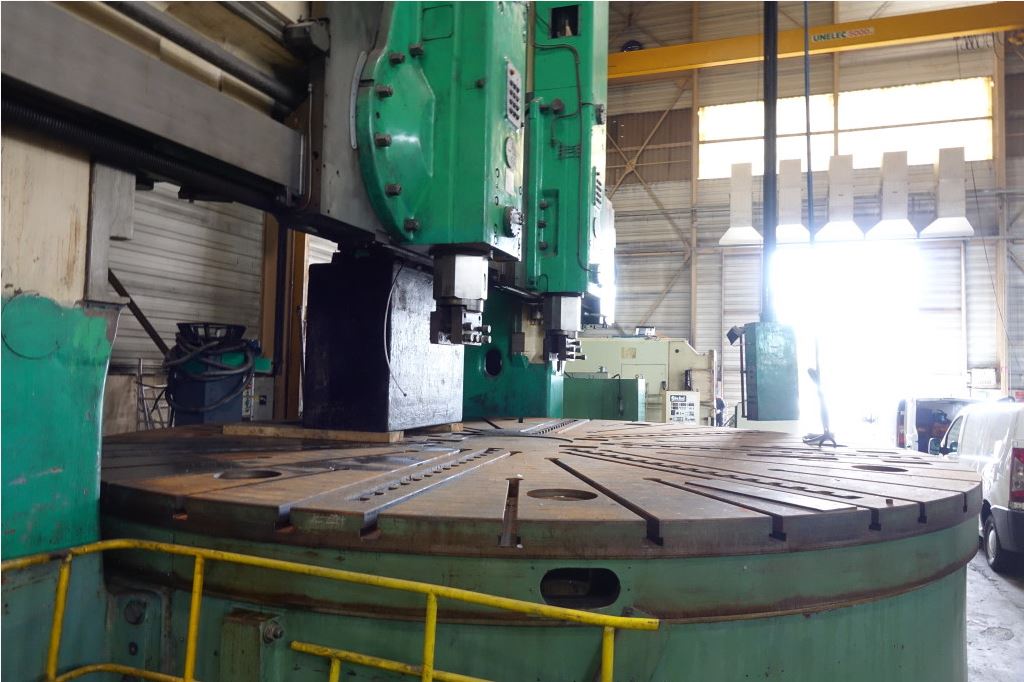

Excellent condition
YOM | 1993 |
Chuck diameter | 6300 mm |
Max. swing | 6300 mm |
Max. turning height | 5300 mm |
Max. stroke of vertical tool head slides | 2510 mm |
Max. angle of tool head swivel | 15 ° / + 30 ° |
Max. load on chuck | 160 T |
Max. cutting force applied by right hand tool head | 100 Nm |
Max. cutting force applied by left hand tool head | 80 Nm |
Max. summary cutting force applied by 2 tool heads | 160 Nm |
Max. cutting moment applied on table | 400 Nm |
Chuck speeds | 0,28 — 25,5 RPM |
Feed rates | 0,0352 to 285 mm/min |
Main motor power | 125 kW |
Height above floor level | 11 105 mm |
Machine dimensions approx | 8200 x 14200 x H 12655 mm |
Weight approx | 243 T |
