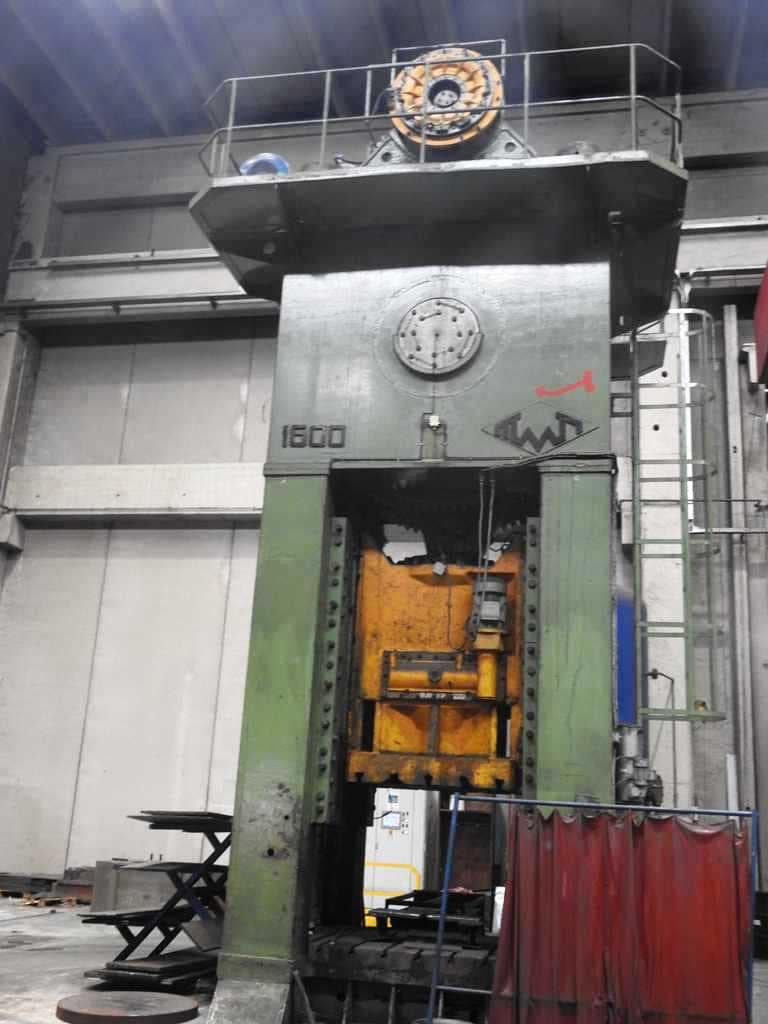

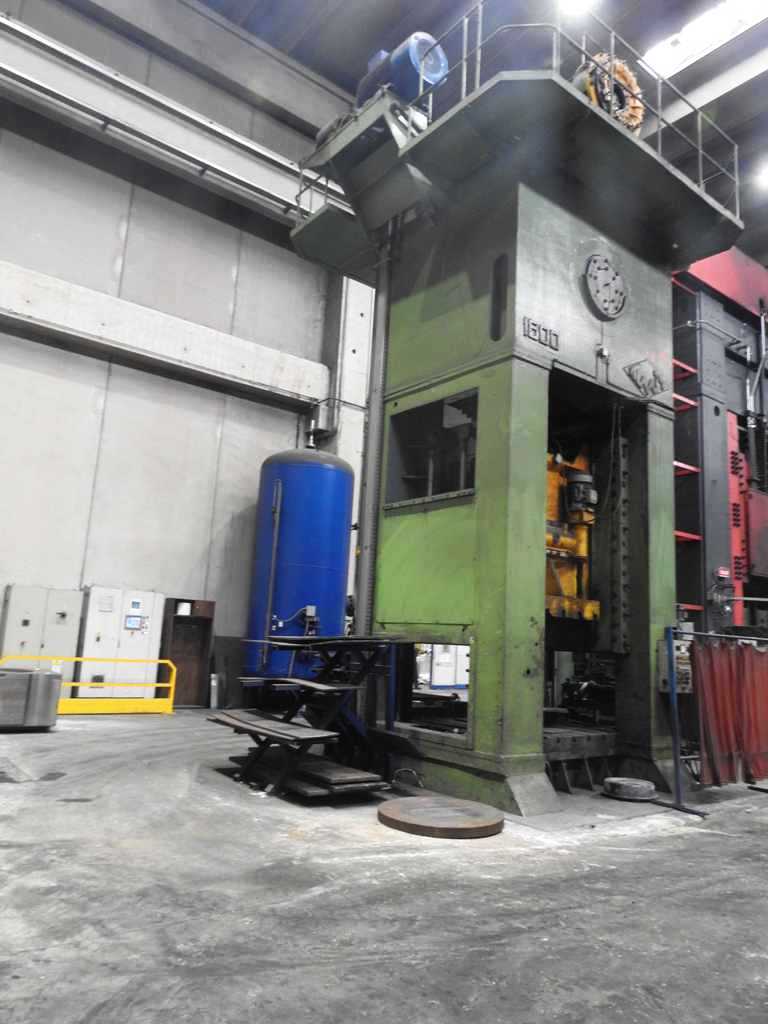

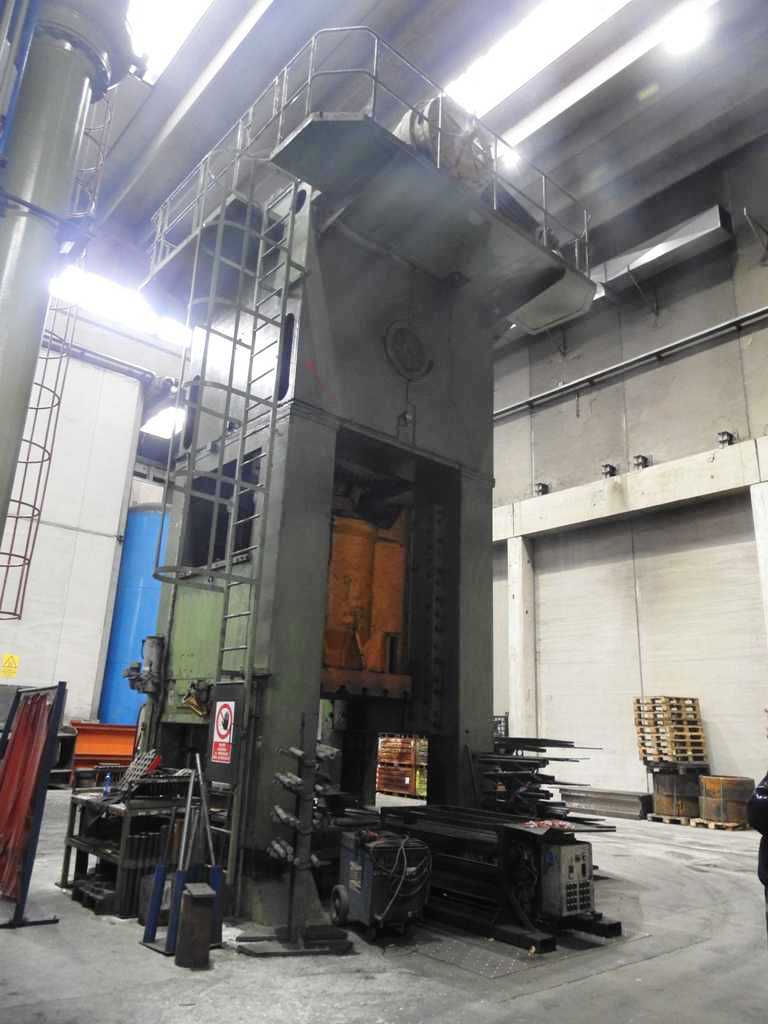

Trimming press VORONEZH K 9542 1600 ton

  • Condition
  • Excellent condition. The press was completely overhauled / reconditioned / modernized.

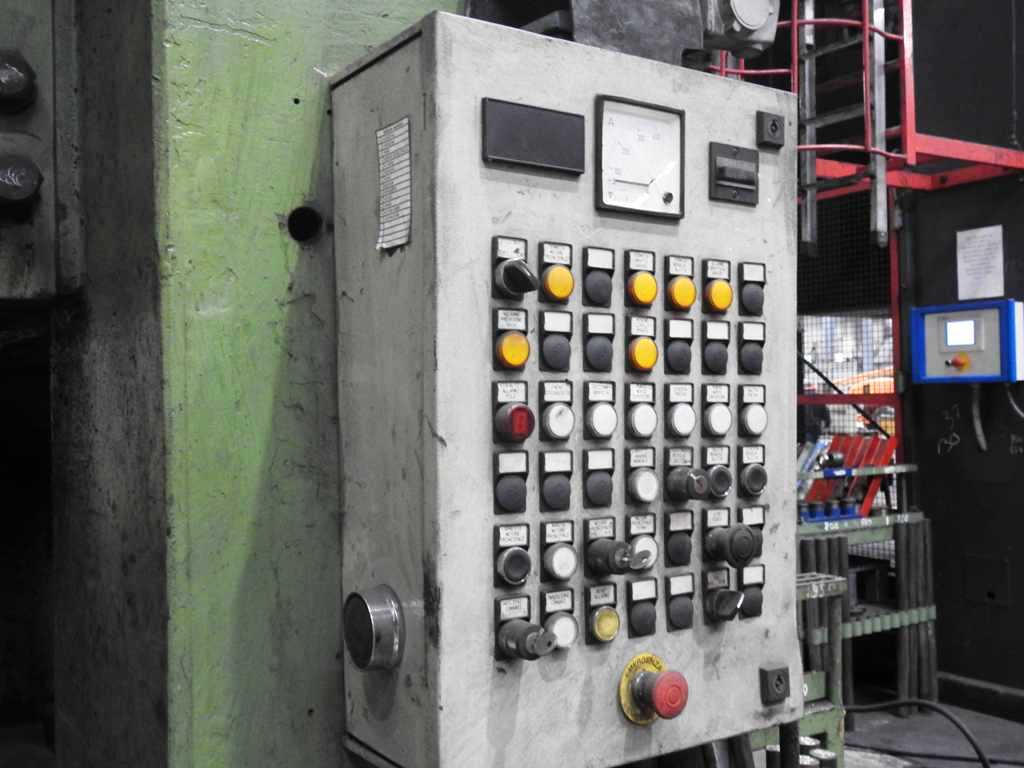

    All the bearings and all bronze parts. It was installed a brand new Italian lubrication and pneumatic systems, modern electric units. CE certificate.

  • Technical Specifications
  • Capacity 1600 ton
    Slide stroke 600 mm
    Number of slide strokes per min 10 / 7
    Shut height 1060 mm
    Table height adjustment 220 mm
    Table size 1800 x 1800 mm
    Holes in table 1250 x 1250 mm
    Ram size 1440 x 1500 mm
    Die bed thickness 320 mm
    Main drive 125 kW
    Dimensions 5050 x 4620 x 8890
    Press weight 157 ton
Trimming press VORONEZH K 9542 1600 ton
