Sheet stamping press Voronezh KA3540 1000 ton 5 pc

  • Condition
  • Press KA3540 in excellent condition!

  • Technical Specifications
  • Manufactured by Voronezh plant (Russia)
    Capacity 1000 ton
    Ram stroke 400 mm
    Max. ram strokes per min. 20
    Shut height 1060 mm
    Ram adjustment 320 mm
    Table size 3150 x 1800 mm
    Ram size 3066 x 1700 mm
    Max. permitted stamp weight on the ram 13000 kg
    Column gap size 1500 x 1900 mm
    Bolster plate thickness 250 mm
    Ram travel to its extreme position where it develops nominal capacity 12 mm
    Pneumatic cushion capacity 200 ton
    Pneumatic cushion stroke 200 mm
    Upper knock-out capacity 50 ton
    Main motor power 132 kW
    Press dimensions 5150 x 4700 x 7830 mm
    Press weight 200000 kg
Sheet stamping press Voronezh KA3540 1000 ton
Sheet stamping press Voronezh KA3540 1000 ton
  • Views in 3 days
    571
  • Offers price
    89

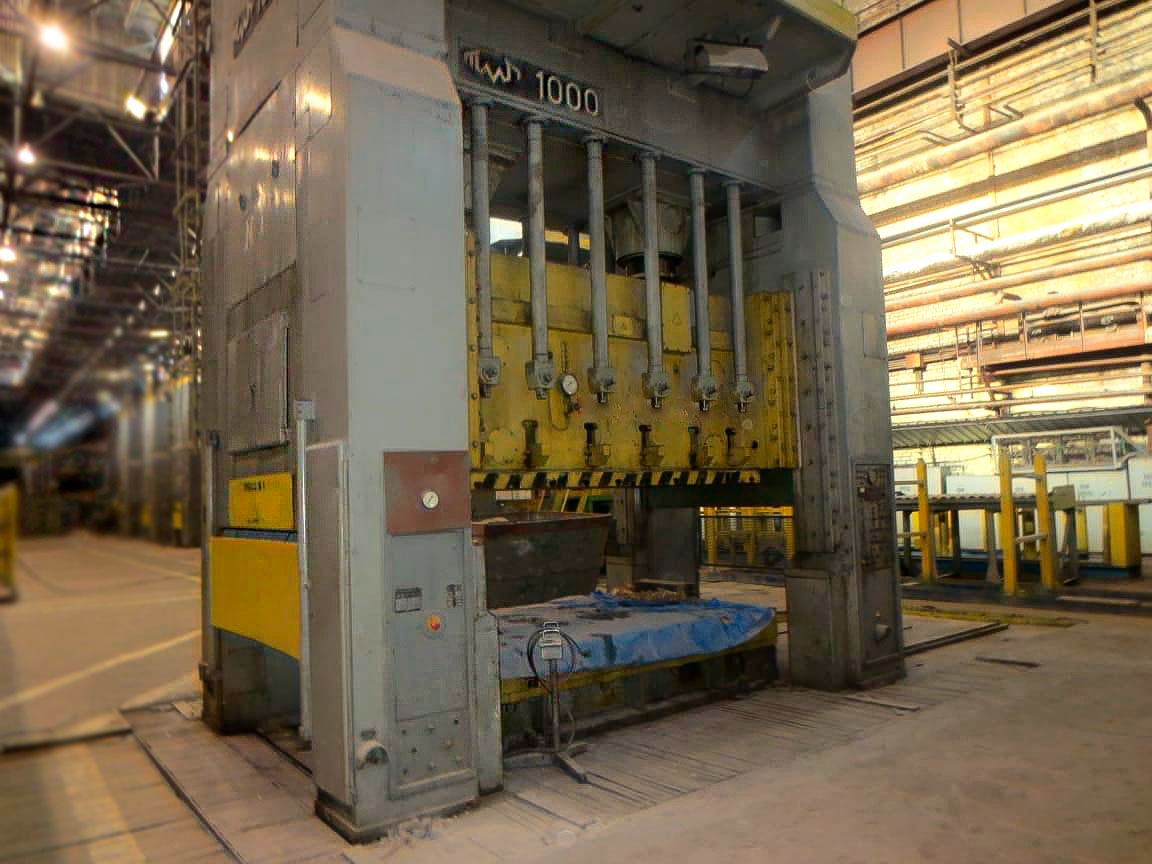

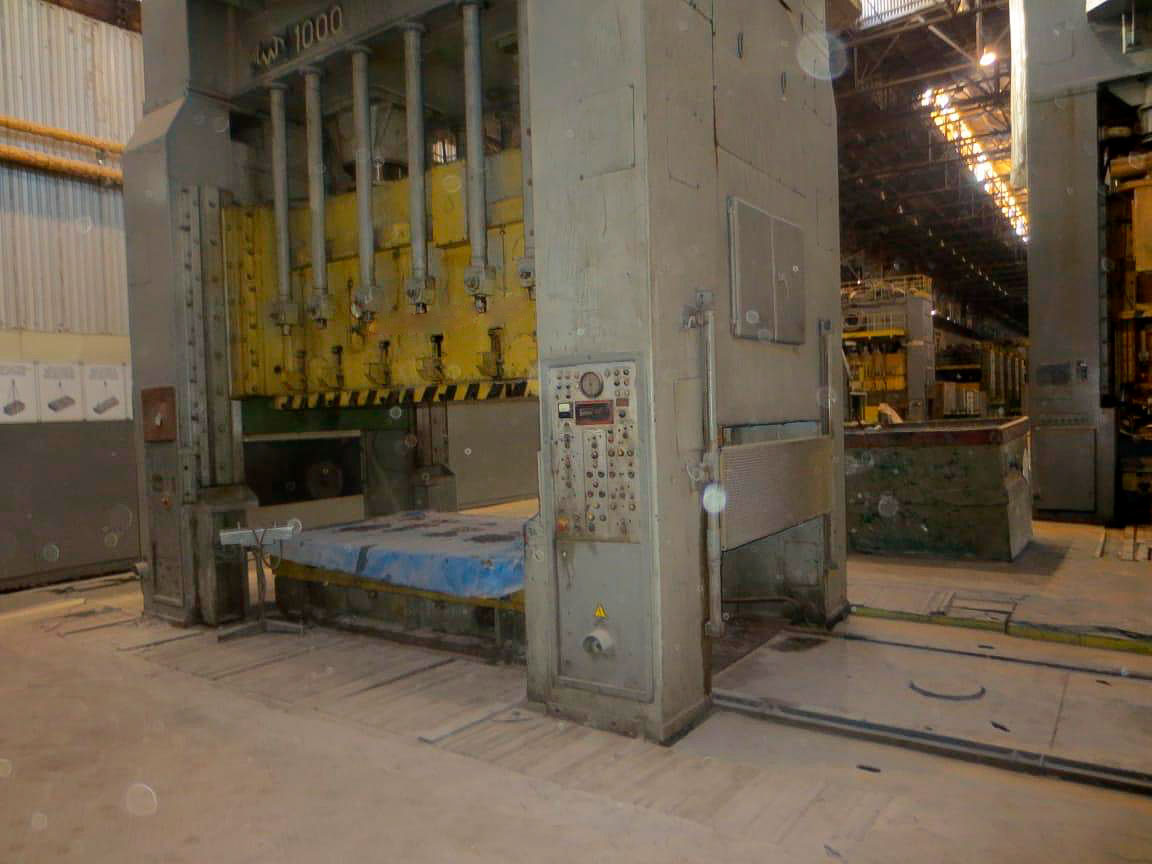

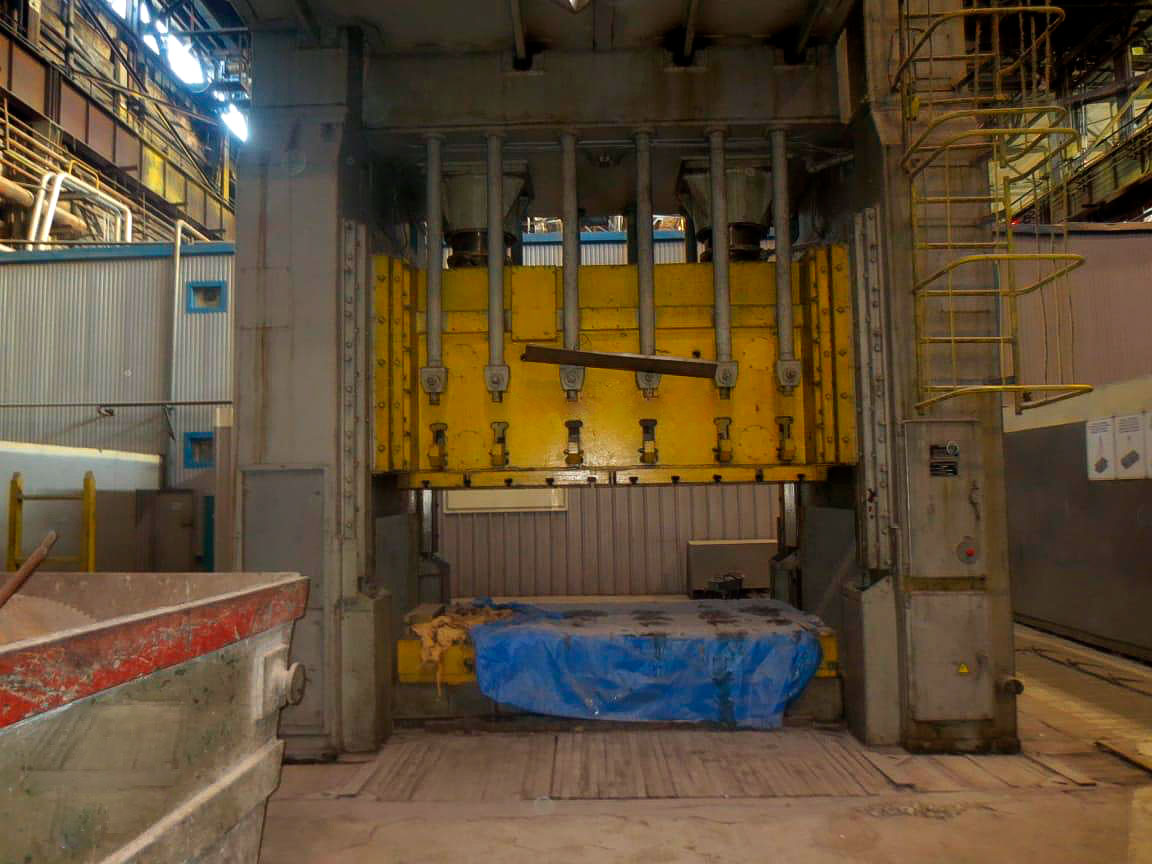

Photo - Sheet stamping press Voronezh KA3540 1000 ton
