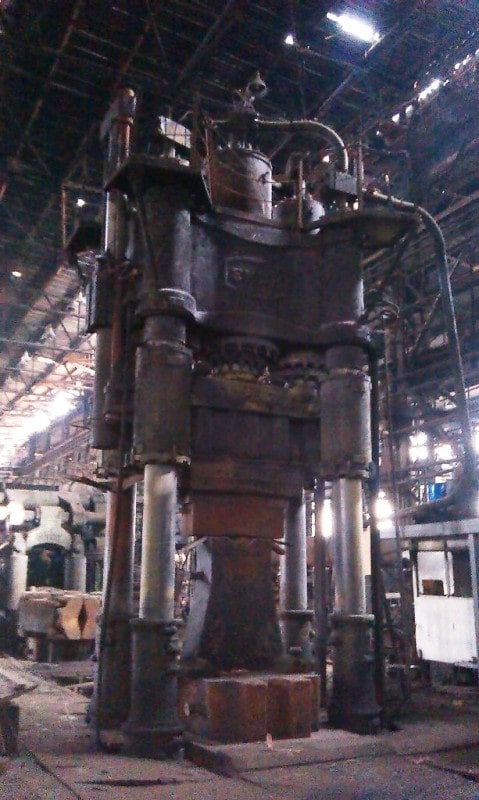

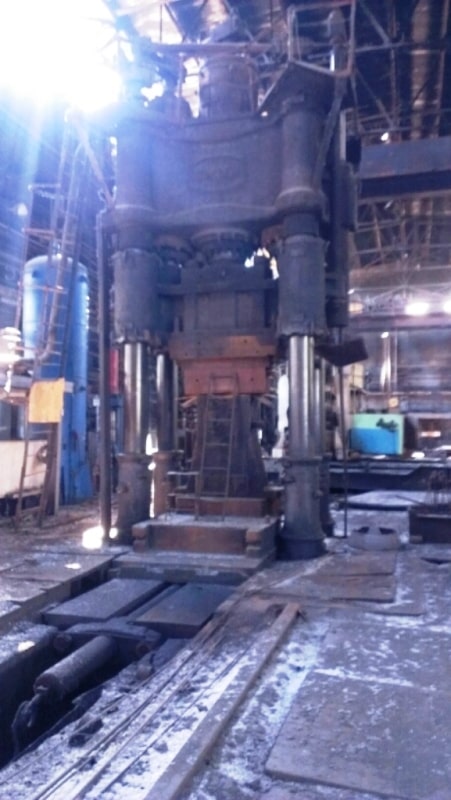

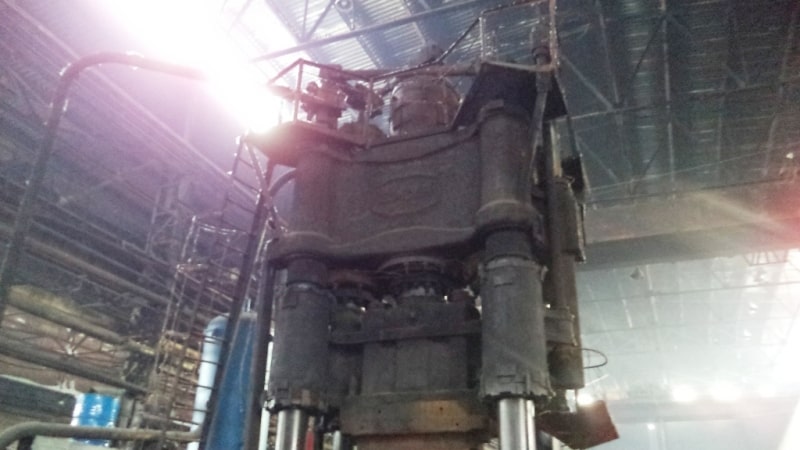

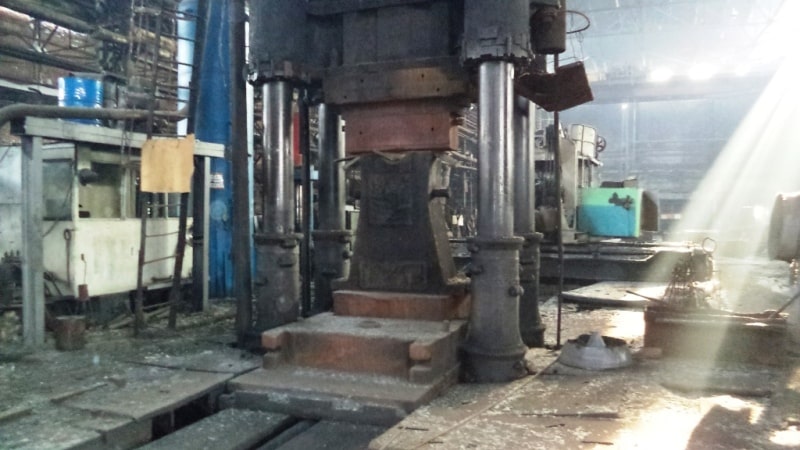

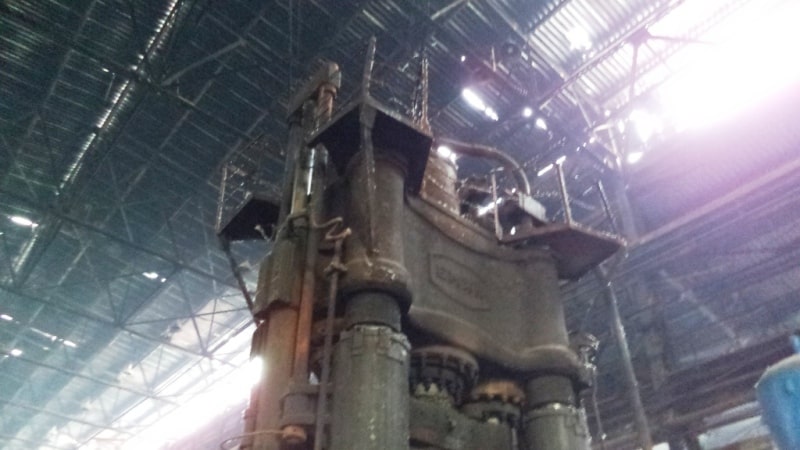

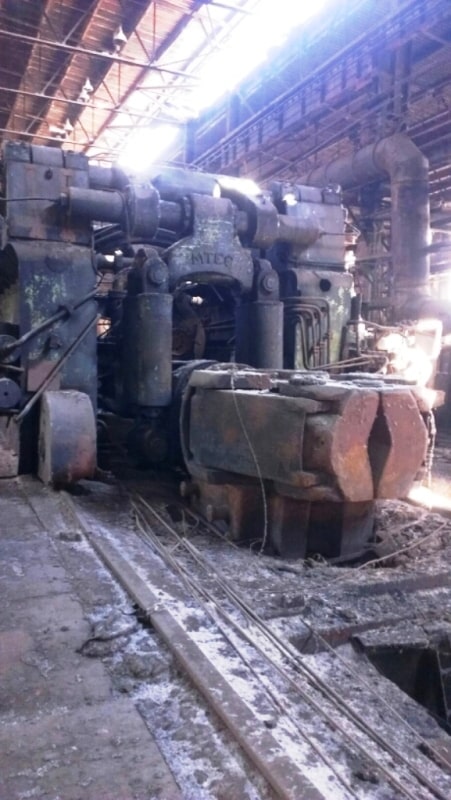

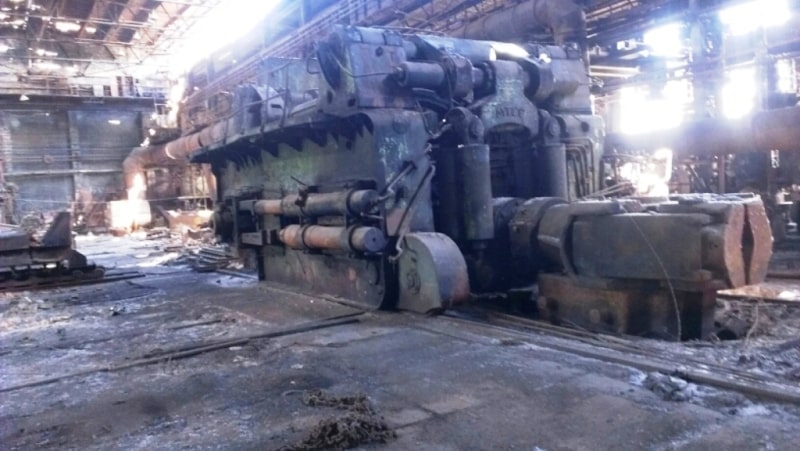

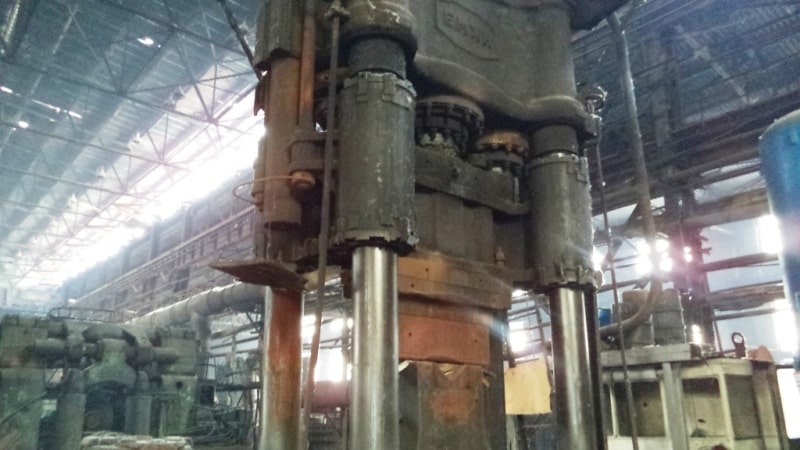

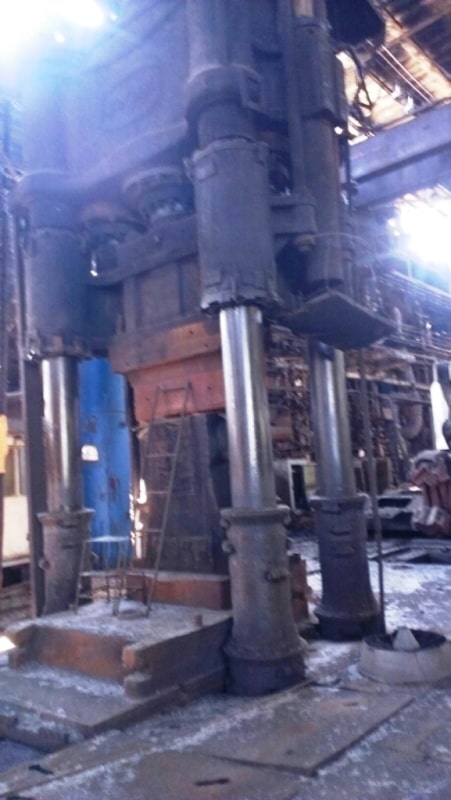

Open die forging press Dnepropress P156 2000T + Manipulator 30 ton

  • Condition

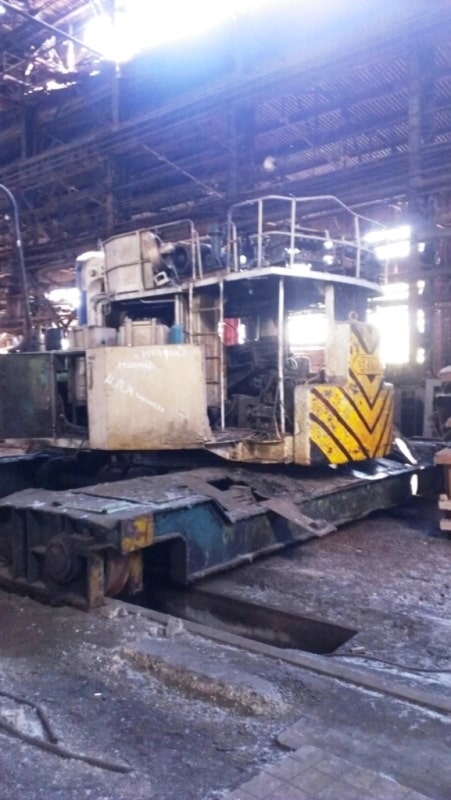

  • Good condition. Press 2000 ton + Manipulator 30 ton.

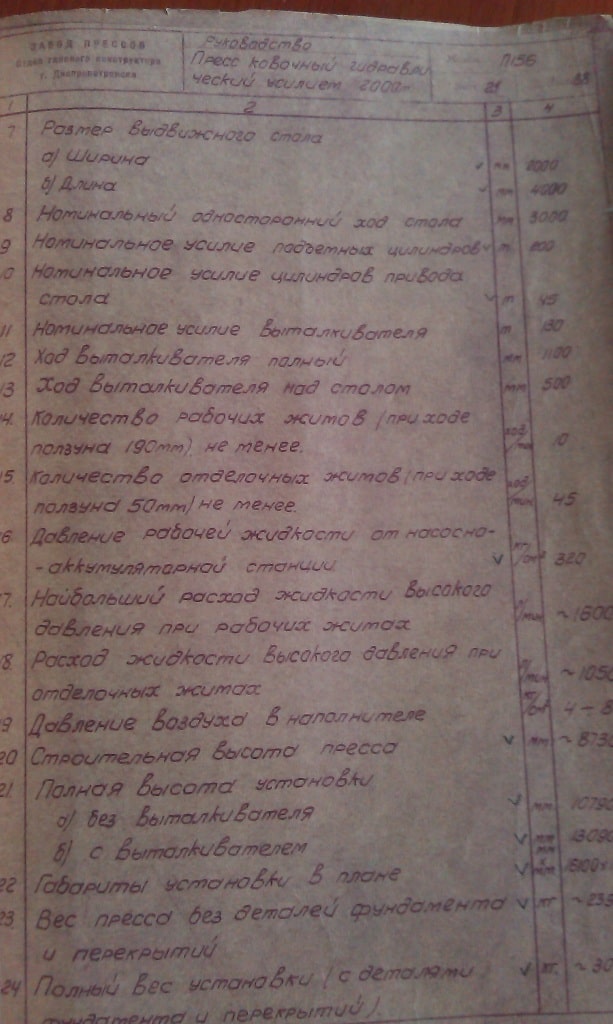

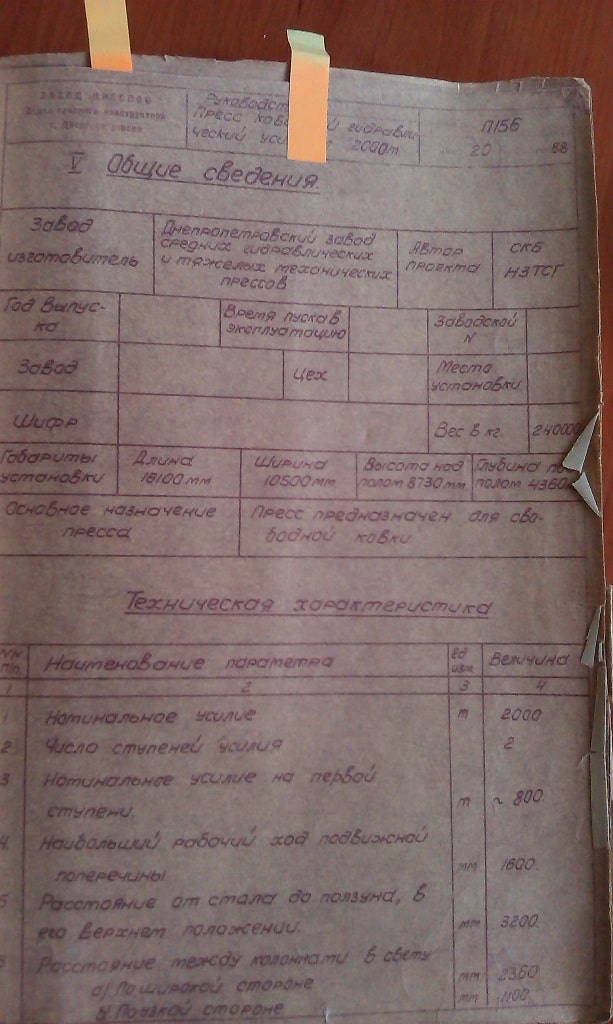

  • Technical Specifications
  • Nominal force 2000 ton
    Nominal Force by steps 1st: 800 ton
    2nd: 2000 ton
    Slider stroke max: 1600 mm 1600 mm
    Number of strokes per min (slide stroke 190 mm) 10
    Number of strokes per min (slide stroke 50 mm) 45
    Distance between slider and bed: 3200 mm
    Pull out table: 2000(W)x4000(L) mm
    Force of ejector 130 ton
    ejection stroke (full) 1100 mm
    ejection stroke (above table) 500 mm
    Distance between column: 2360 mm
    Drive water-accumulator drive
    power fluid aqueous emulsion
    Power fluid pressure 320 kg/cm2
    pneumatic-system air pressure 4-8 kg/cm2
    fluid consumption max 1600 l/min
    Overall dimensions L x W x H 16100 x 10500 x 10790 mm
    Height above floor: 8900 mm
    Weight: 340 ton
