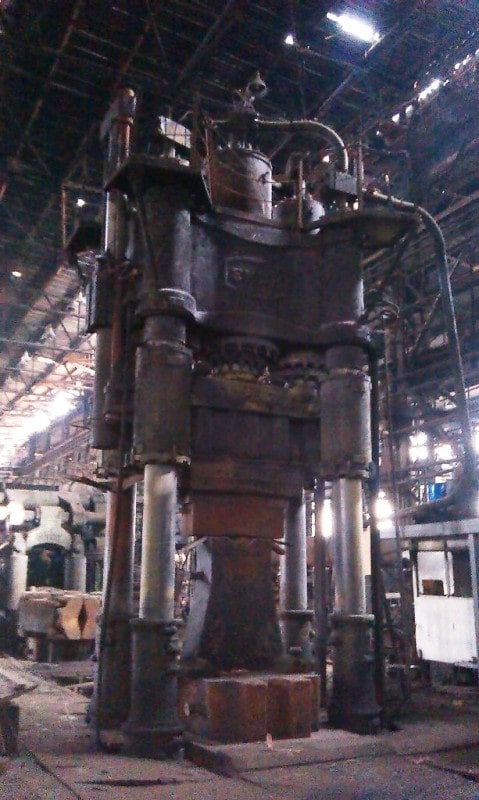

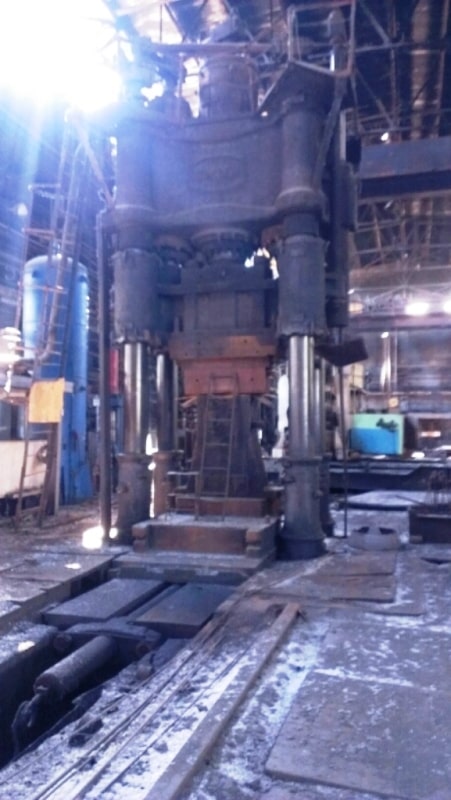

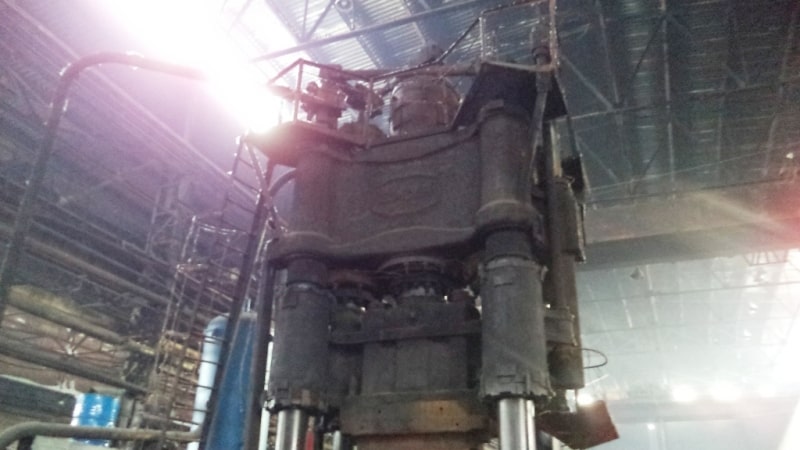

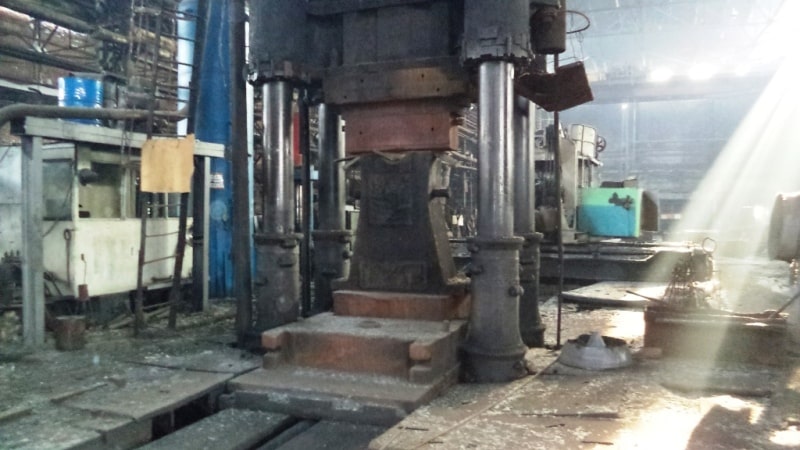

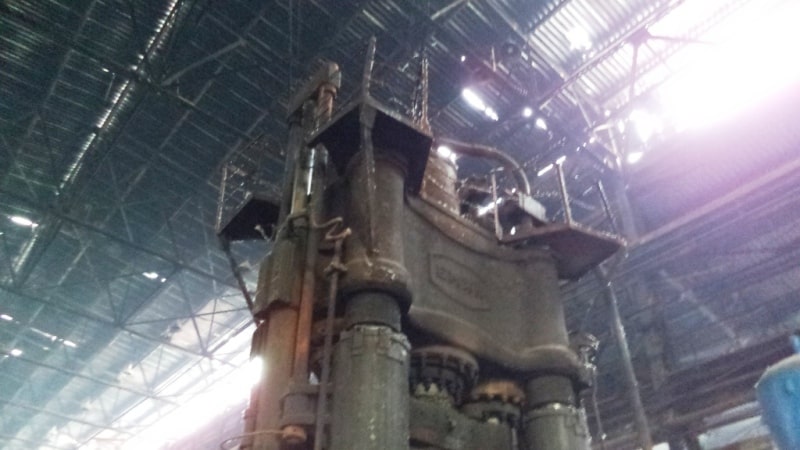

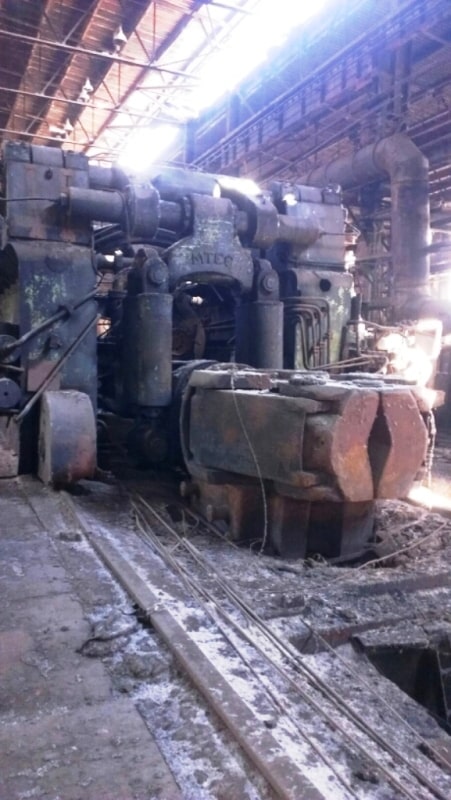

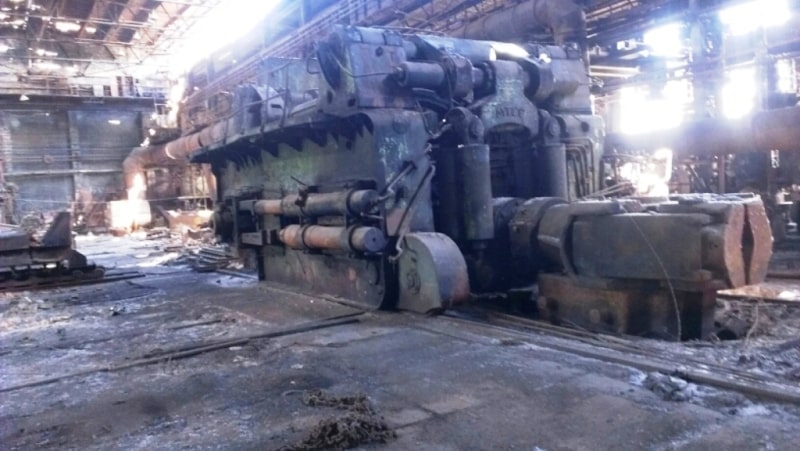

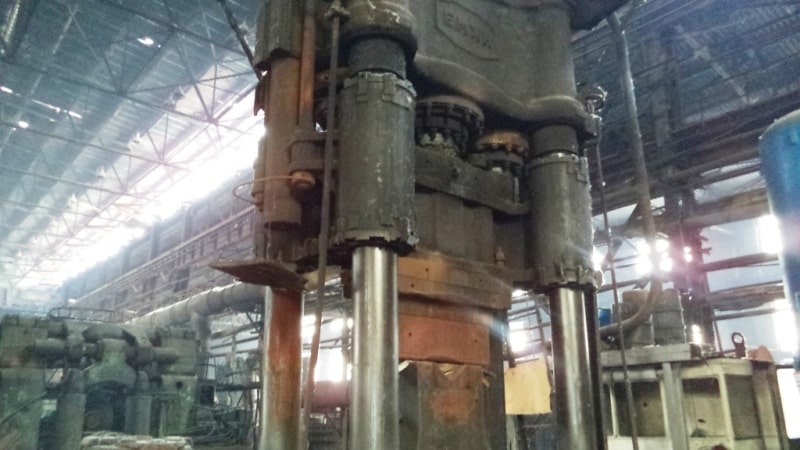

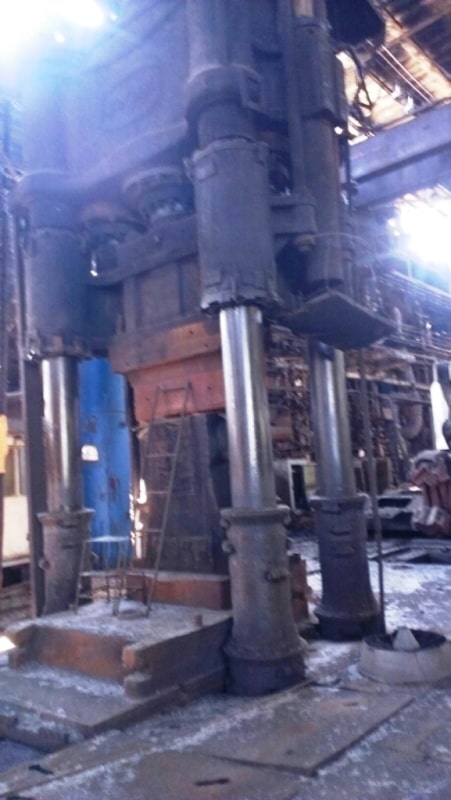

Open die forging press Dnepropress P156 2000 ton + Manipulator 30 ton

• Condition

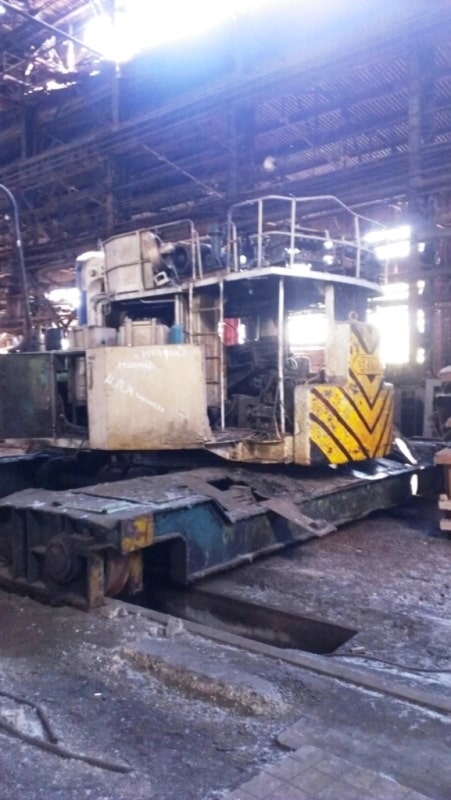

• Good condition. Press 2000 ton + Manipulator 30 ton.

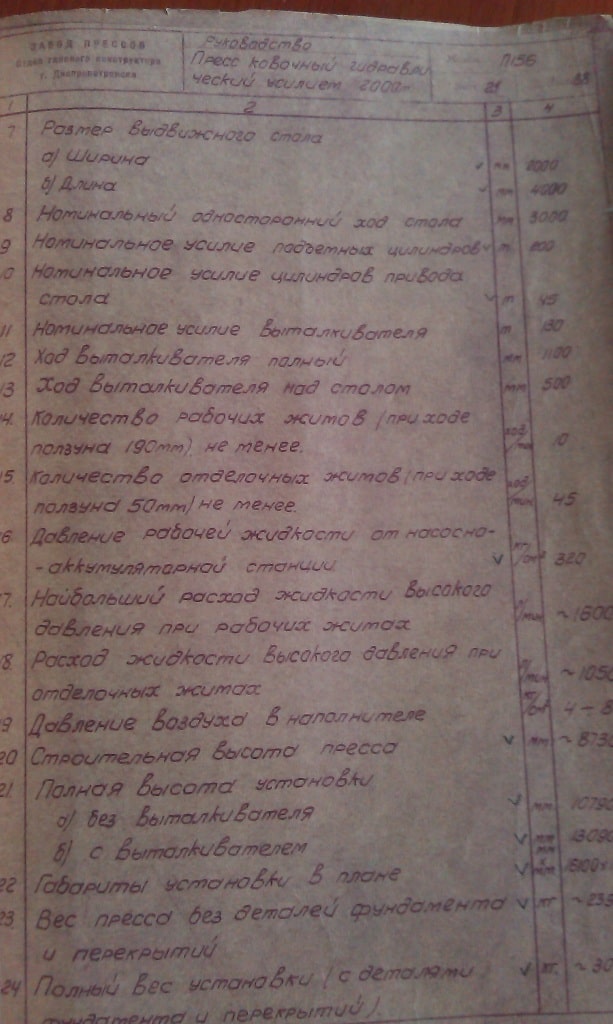

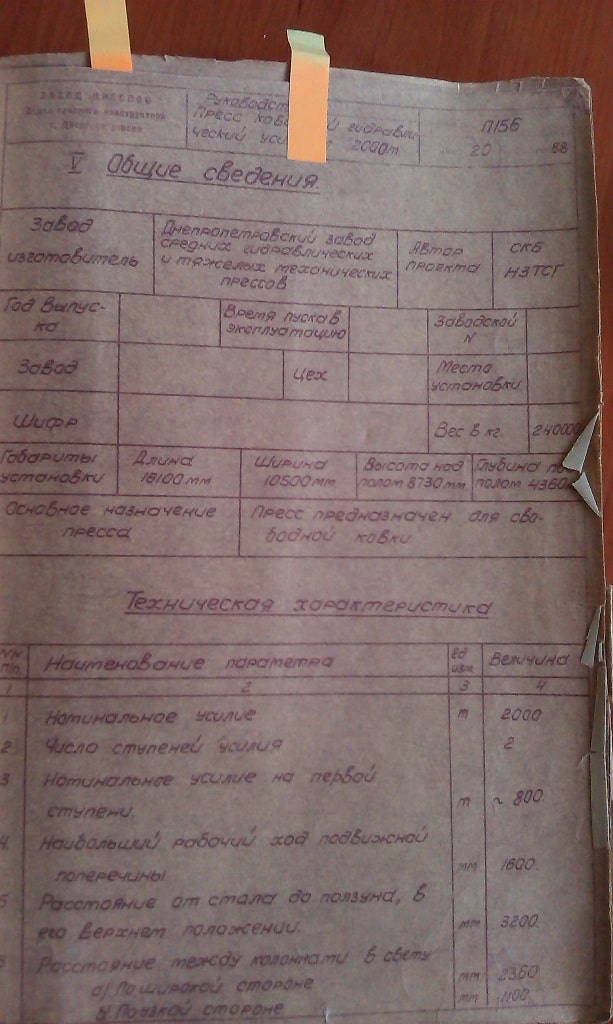

• Technical Specifications

• Nominal force	2000 ton
  Nominal Force by steps	1st: 800 ton 2nd: 2000 ton
  Slider stroke max: 1600 mm	1600 mm
  Number of strokes per min (slide stroke 190 mm)	10
  Number of strokes per min (slide stroke 50 mm)	45
  Distance between slider and bed:	3200 mm
  Pull out table:	2000(W)x4000(L) mm
  Force of ejector	130 ton
  ejection stroke (full)	1100 mm
  ejection stroke (above table)	500 mm
  Distance between column:	2360 mm
  Drive	water-accumulator drive
  power fluid	aqueous emulsion
  Power fluid pressure	320 kg/cm2
  pneumatic-system air pressure	4-8 kg/cm2
  fluid consumption max	1600 l/min
  Overall dimensions L x W x H	16100 x 10500 x 10790 mm
  Height above floor:	8900 mm
  Weight:	340 ton
