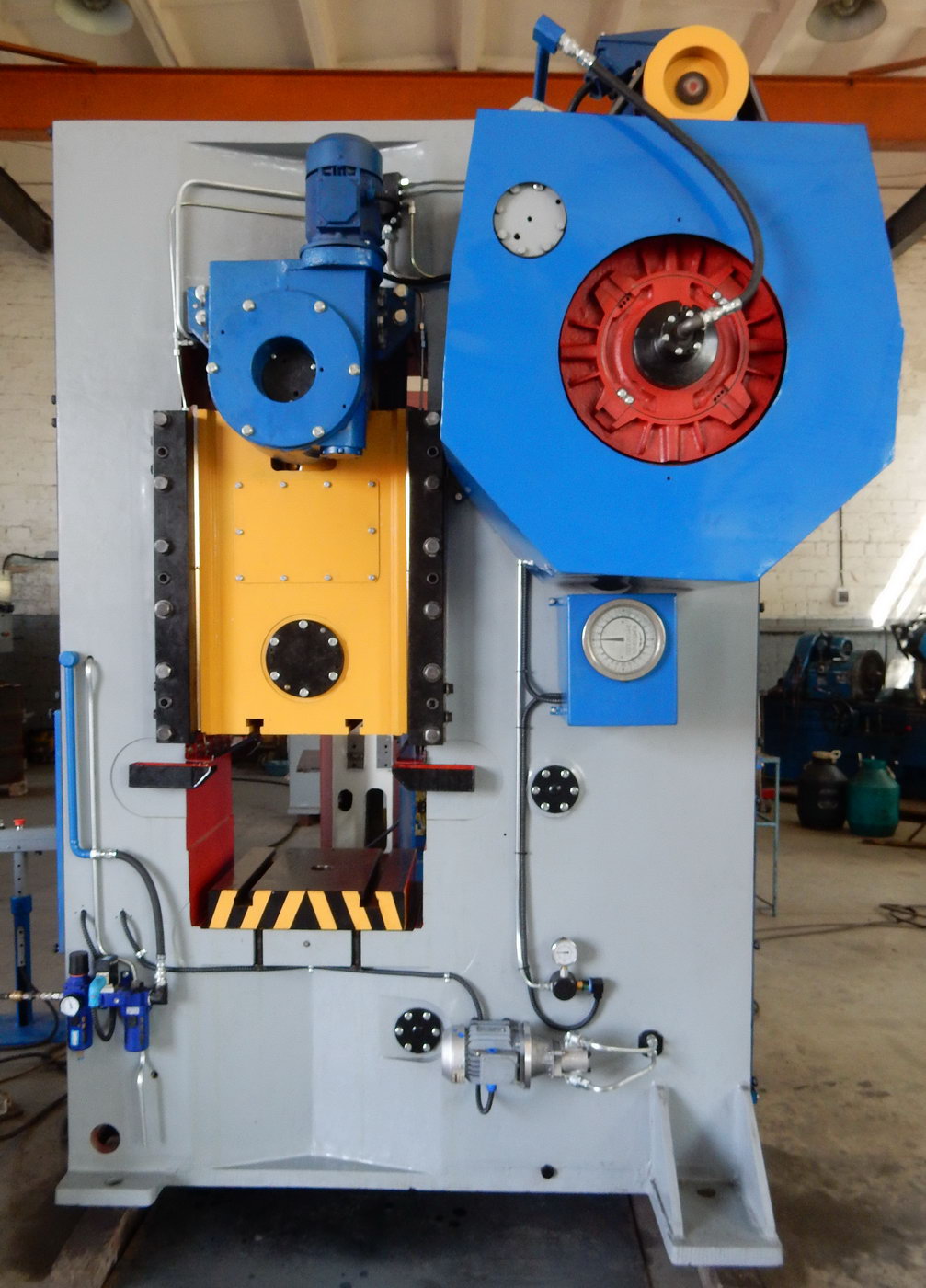

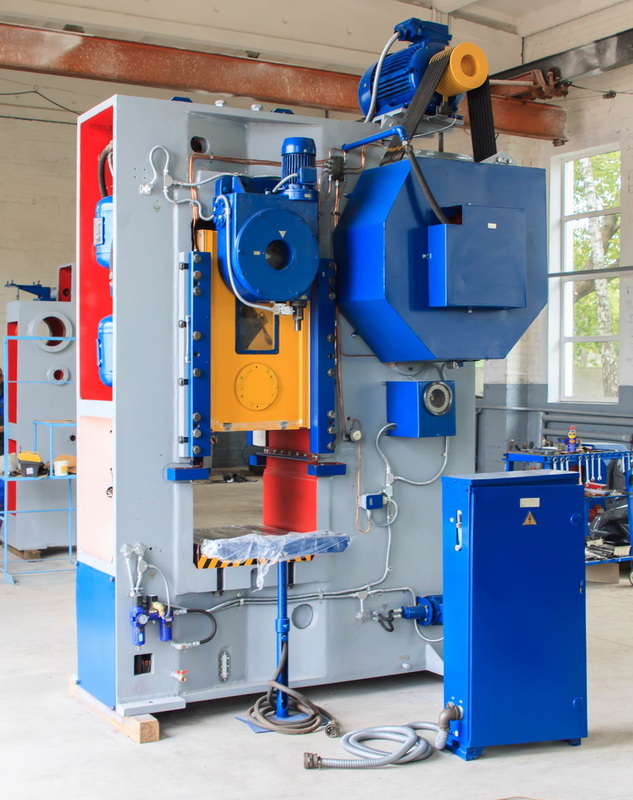

Knuckle joint press KB8336 400 ton

# KJ-RE-010
  • Condition

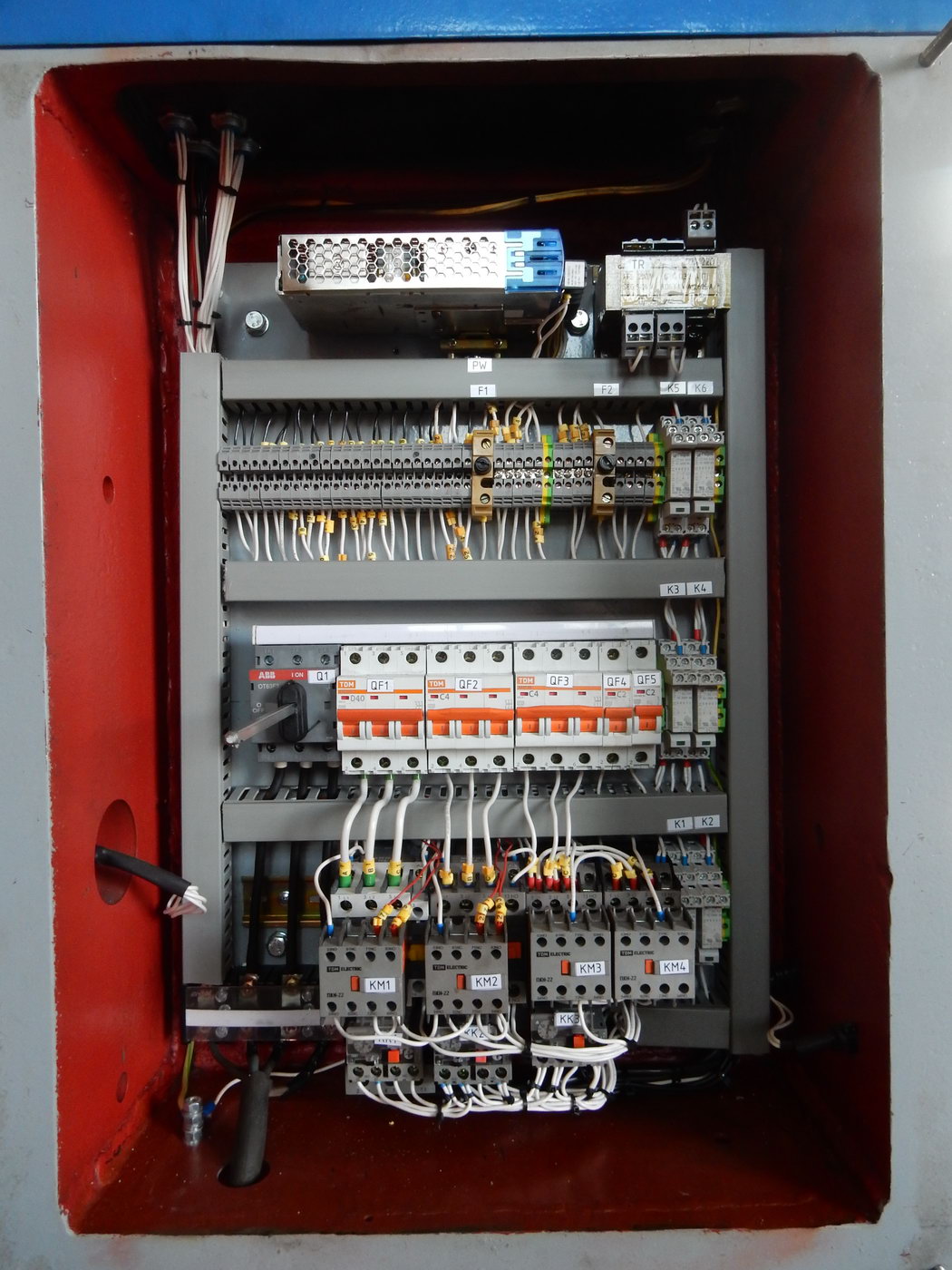

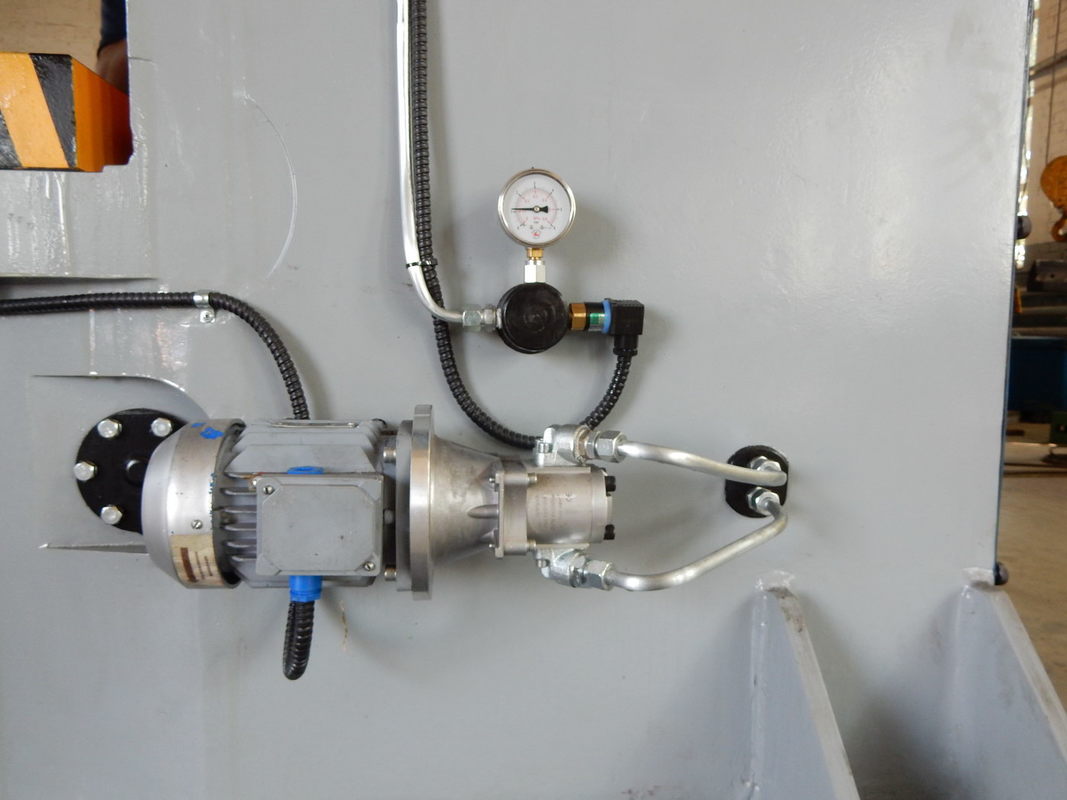

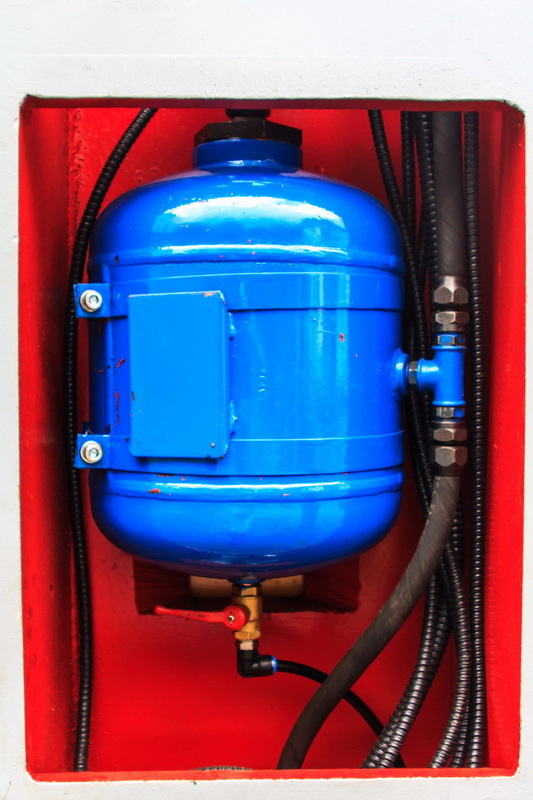

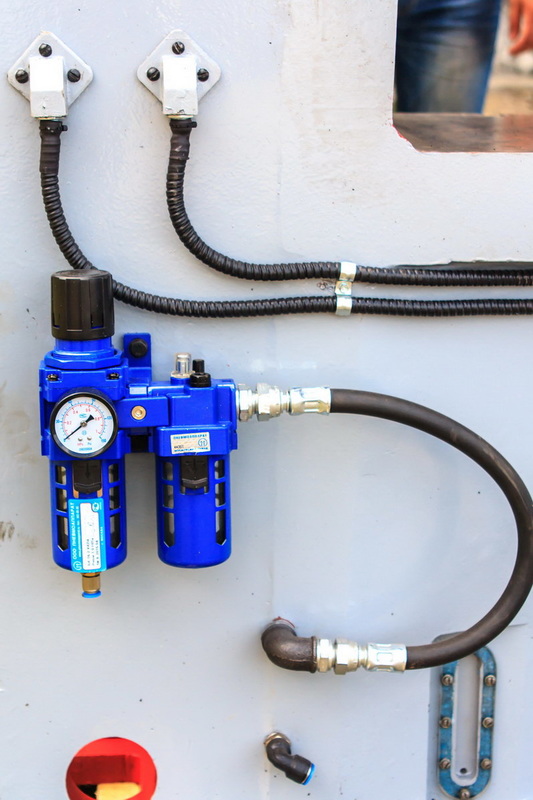

  • Аull retrofit of mechanical parts, pneumatic and lubrication system. Installed full brand new modern electric system with PLC. Safety system, operator protection system, overload protection, main motor speed control, counter for ram press position, HMI. System based on the DELTA (Taiwan), Mitsubishi, Samcoon PLC.
    Warranty for all press systems: 6 months.

  • Watch video
  • Technical Specifications
  • Maximum force 400t

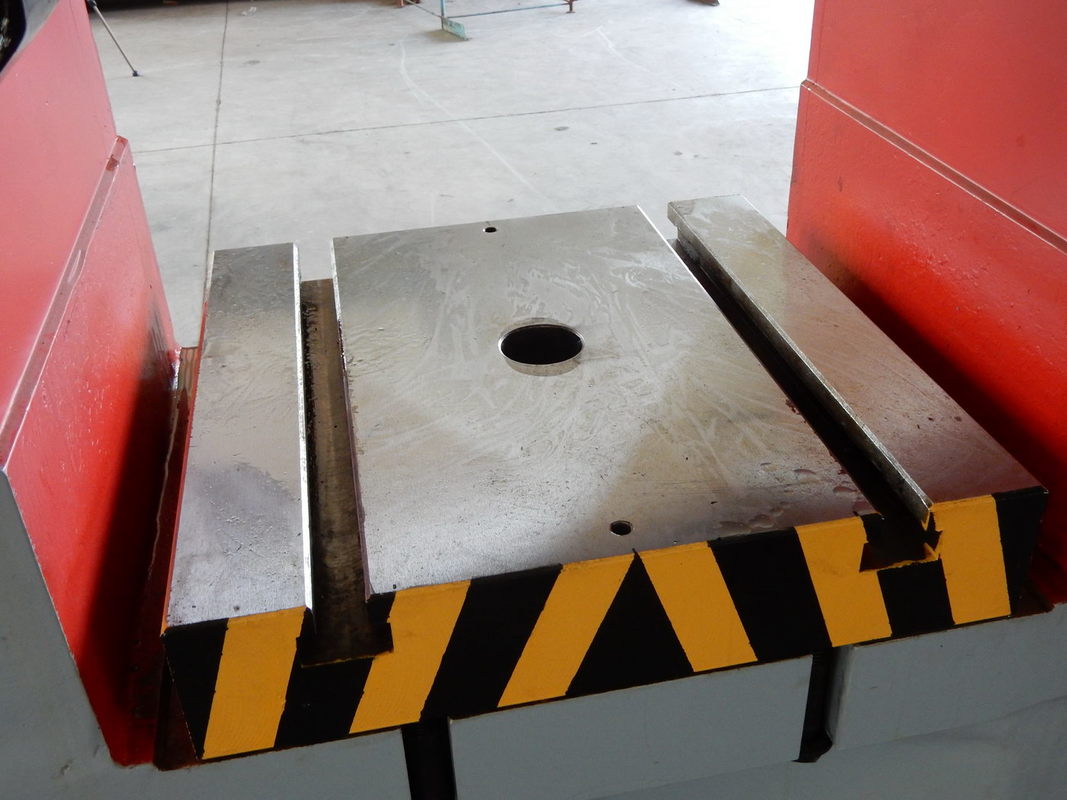

    Table dimensions 500×500 mm
    Ram stroke 130 mm
    Number of strokes per minute 50
    Distance between a plate under a stamp and slider 375 mm

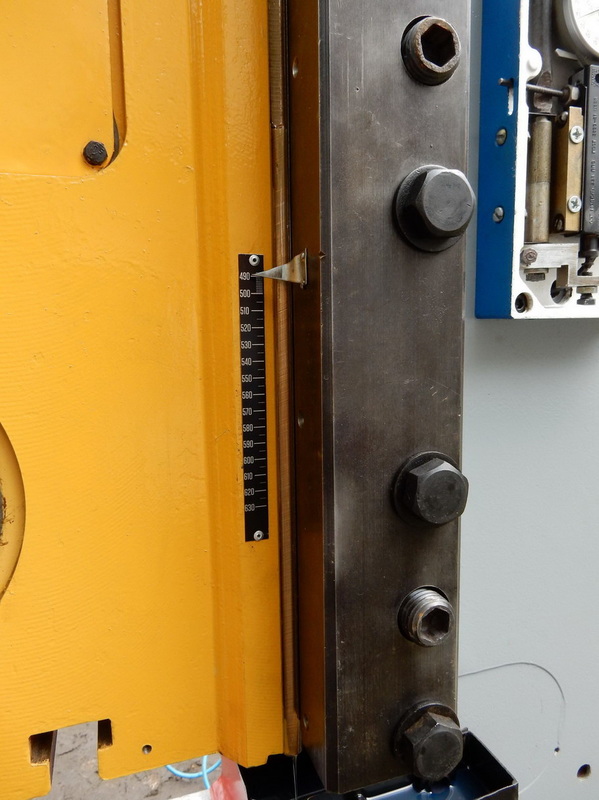

    Adjustment of the distance between the bolster plate and the slide 12 mm
    Dimensions
    Weight 8425 Kg
    Length 1,940 m
    Width 1,240 m
    Height 2,800 m
    Voltage 50 Hz
    380 V
    Motor capacity 12 kW
  • Additional Information
  • Knuckle joint press KB8336 400 ton — has proven itself especially in pressing and punching processes where a relatively small stroke is required.
    This includes: Embossing, Cold forging presses, Solid forging, Thick sheet metal forming, Fine blanking presses, Deep drawing, Trimming and deburring

Knuckle joint press KB8336 400 ton
Knuckle joint press KB8336 400 ton
