Hot forging press Kramatorsk K8546 4000 ton

  • Condition
  • Good condition, under power. Year of manufacture: 1968

  • Watch video
  • Technical Specifications
  • Nominal force 4000 ton
    Slide stroke 400 mm
    Number of slide continuous
    strokes per minute
    50
    Shut height (distance between bed in top position
    and slide bolster plate, stroke down)
    1000 mm
    Bed adjustment 15 mm
    Distance between uprights clear 1660
    Slide dimensions
     — left-to-right  1420 mm
     — front-to-back 1420 mm
    Bed dimensions
     — left-to-right  1570 mm
     — front-to-back 1620 mm
    Upper knockout stroke 60 mm
    Down knockout stroke 125 mm
    Uprights openings dimensions
     — width 770 mm
     — height 995 mm
    Main motor power 185 kW
    Overall dimensions
     — left-to-right   6100 mm
     — front-to-back  4710 mm
     — height 8680 mm
    Height above floor level 6820
    Mass 400 ton
  • Additional Information
  • Vertical hot forging press Kramatorsk K8546 4000 ton are used for production of precise die forgings with utilization in the automotive industry, for hot and semi-hot forging, with high stiffness and extensive diagnostics, including modern, precise and solid fixtures and other comprehensive equipment.

    Hot forging press Kramatorsk K8546 4000 ton designed for hot stamping of hand tools, automotive parts, motorcycles, bicycles, trains, ships, aircraft, machine tools, textile machinery, woodworking machinery, transport equipment, mining equipment, spare parts, etc.

Hot forging press Kramatorsk K8546 4000 ton
Hot forging press Kramatorsk K8546 4000 ton
  • Views in 3 days
    488
  • Offers price
    89

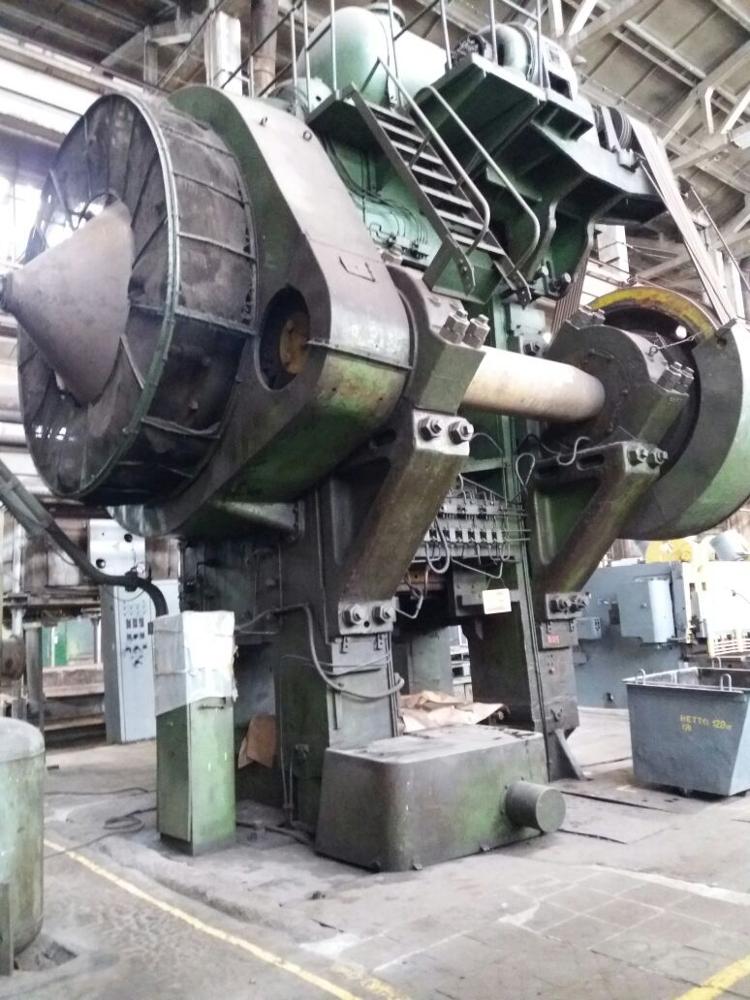

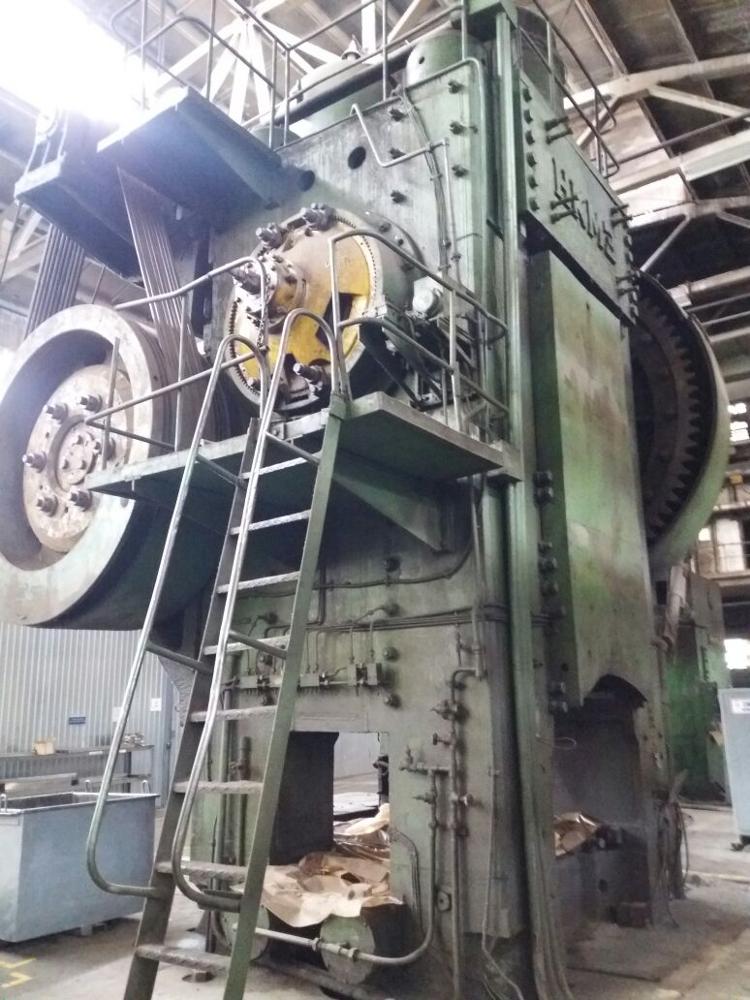

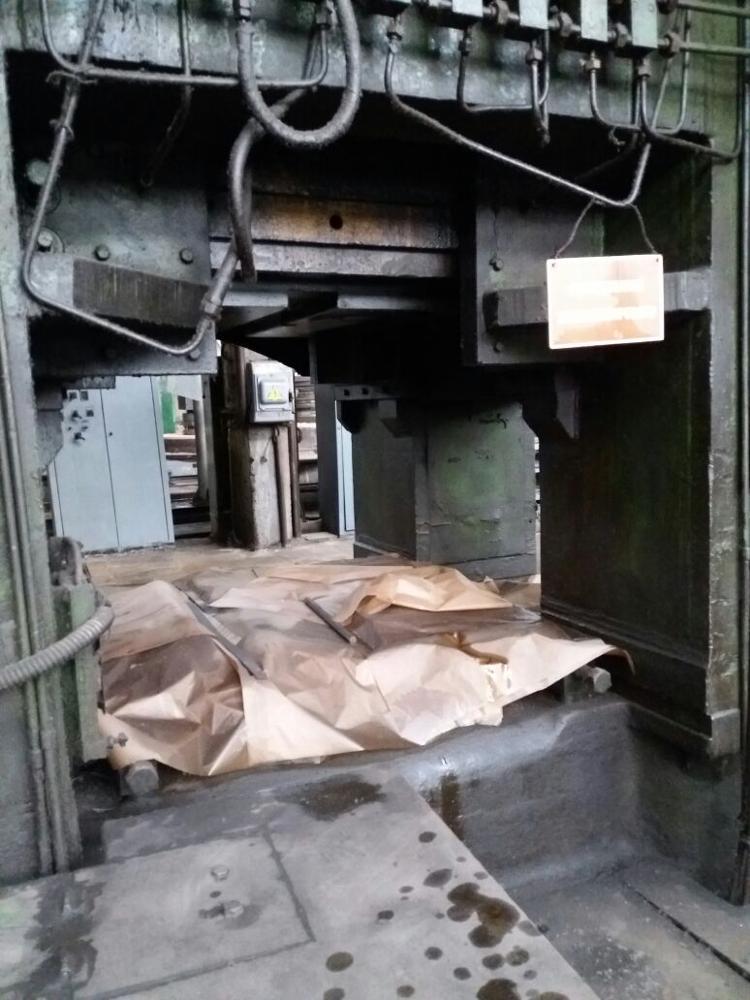

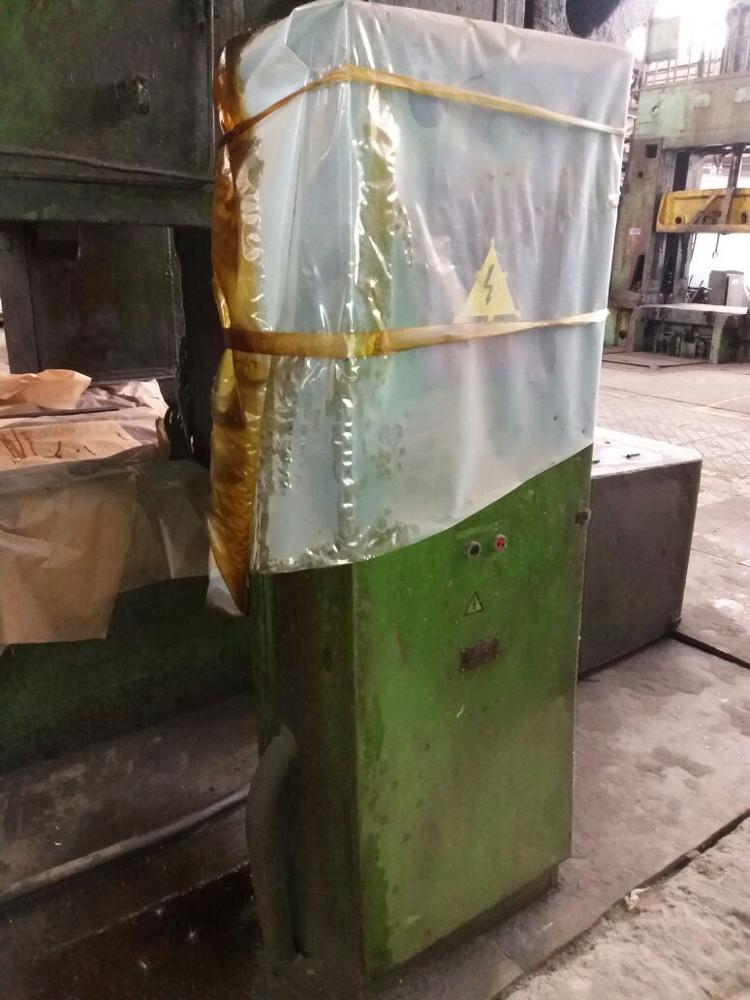

Photo - Hot forging press Kramatorsk K8546 4000 ton
