Horizontal Forging Machine V1136 400 ton 11 pc

  • Condition
  • Good condition

  • Technical Specifications
  • Capacity 400 ton
    Movable die stroke 125 mm
    Max. upsetting ram stroke 290 mm
    Upsetting ram work stroke 190 mm
    Upsetting ram return stroke with closed dies 60 mm
    Distance between upsetting ram and dies stroke forward 100 mm
    Number of ram strokes per minute 50
    Die dimensions 450 x 160 x 480 mm
    Electric motor power 21 kW
    Machine dimensions 4330 x 3150 x 1860 mm
    Machine weight 36000 kg
  • Additional Information
  • Intended for hot forging of details in multiple stamp positions by single blanks of solid or cored sections. Machines are used in automotive, tractor, agricultural, transport and other industries.

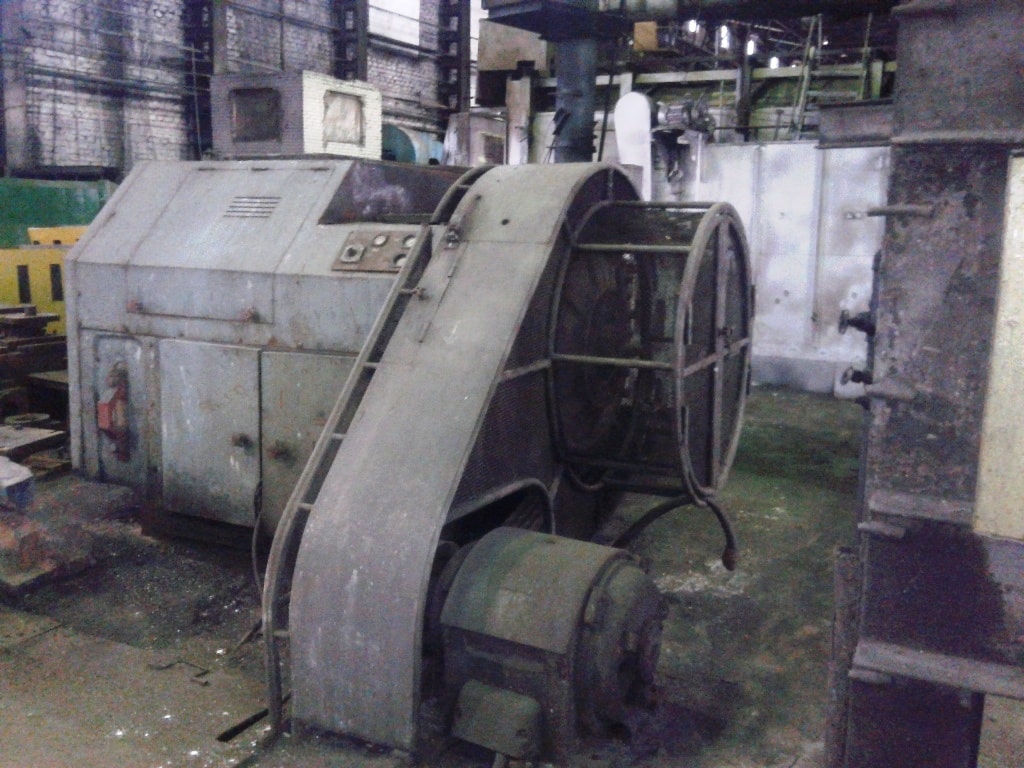

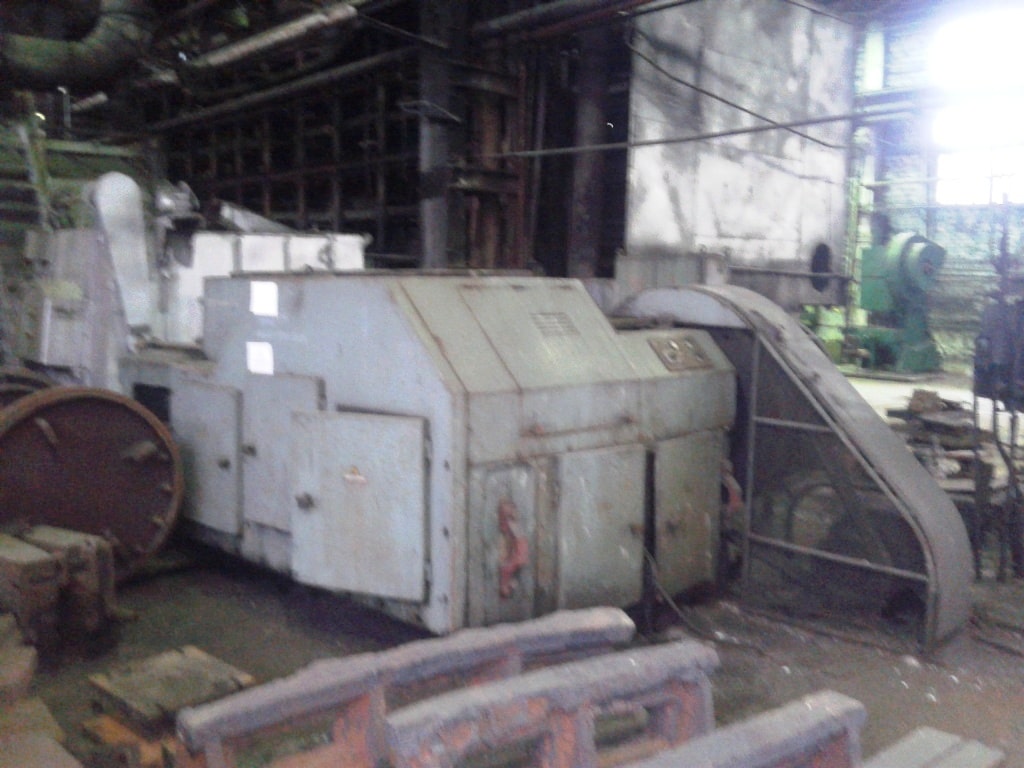

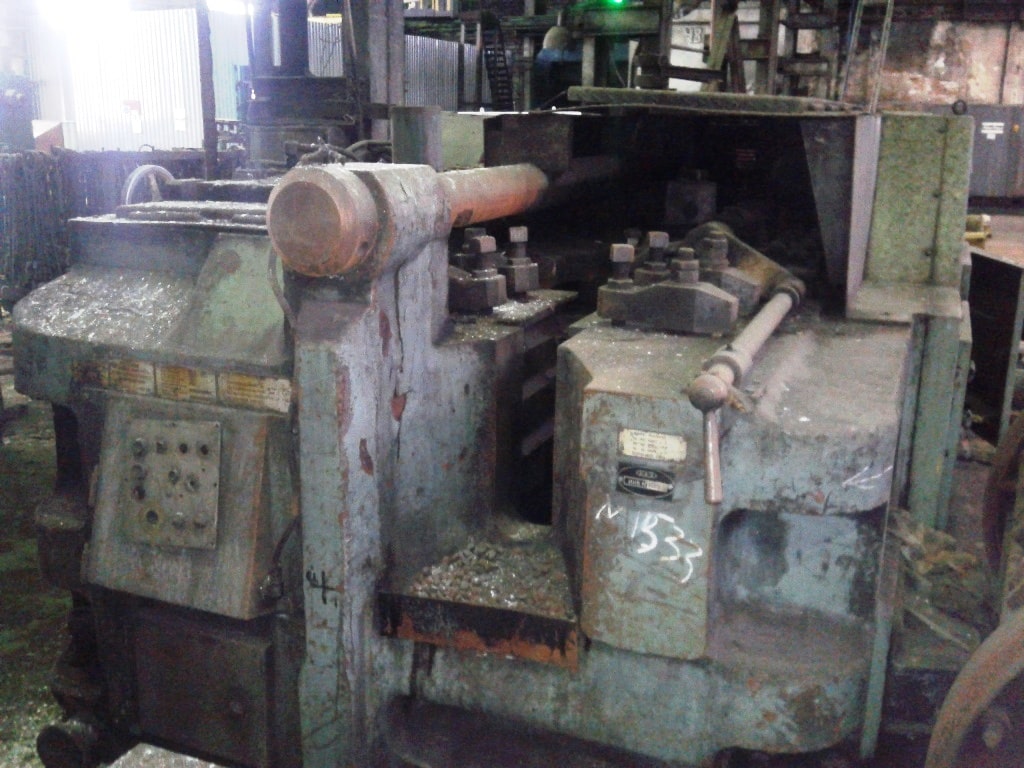

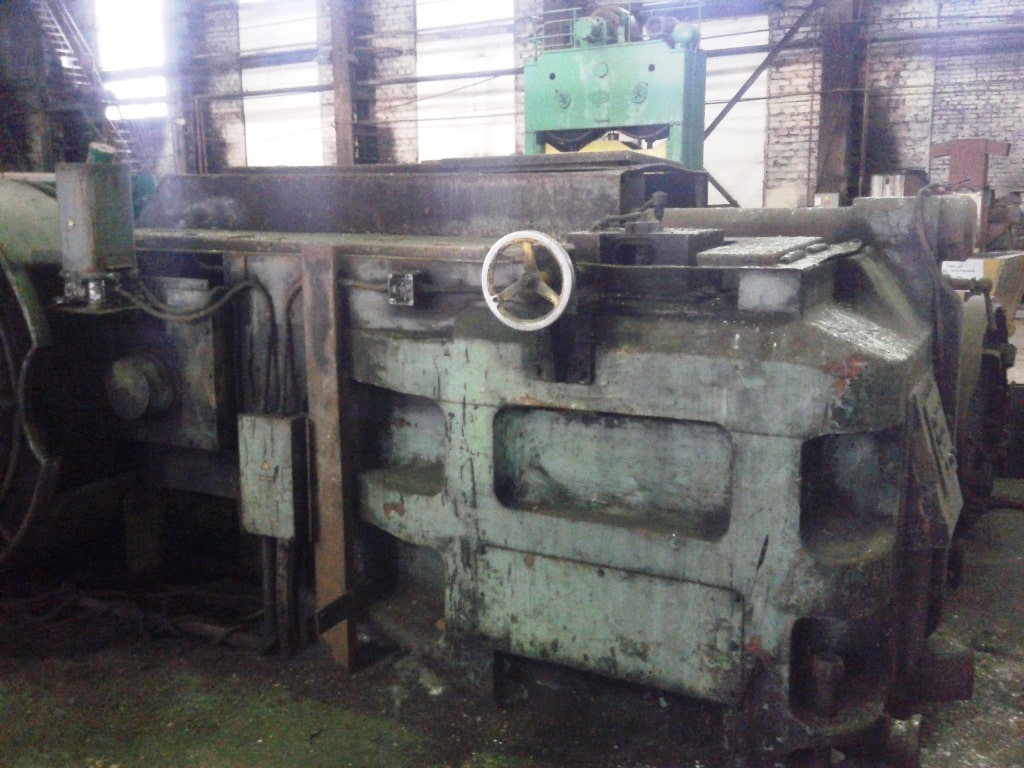

Horizontal Forging Machine V1136 400 ton
