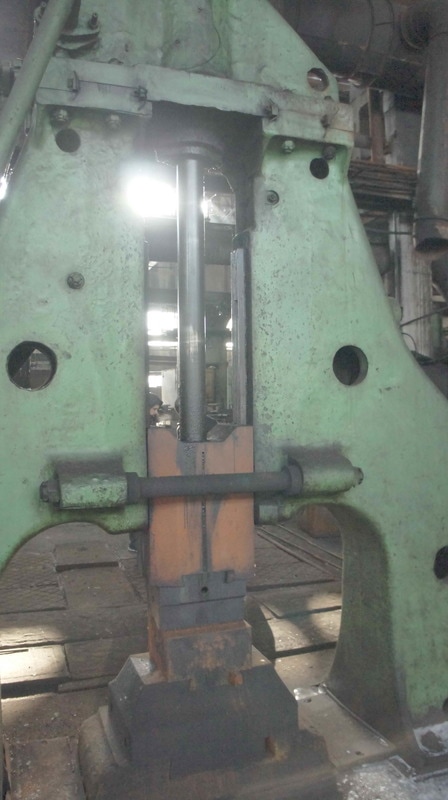

Hammer M1340 1 ton

#HM-M1-033
  • Contact the manager
  • Technical Specifications
  • -Impact energy, kj 25
    -Nominal mass of drop parts, kg 1000
    -Max. number of blows per minute 63
    -Distance clear between columns, mm 1800
    -Working zone daylight, mm 450
    -Bottom die impression-to-floor distance, mm 750
    -Die impression size, mm 410 x 230
    -Steam pressure, MPa 0,7…0,9
    -Compressed air pressure, MPa 0,6…0,8
    -Hammer dimensions, mm 3910 х 1400
    -Hammer height above floor level, mm 5145
    -Weight of the hammer without anvil block, kg 13000
    -Anvil block weight, kg 15000

Hammer M1340 1 ton
