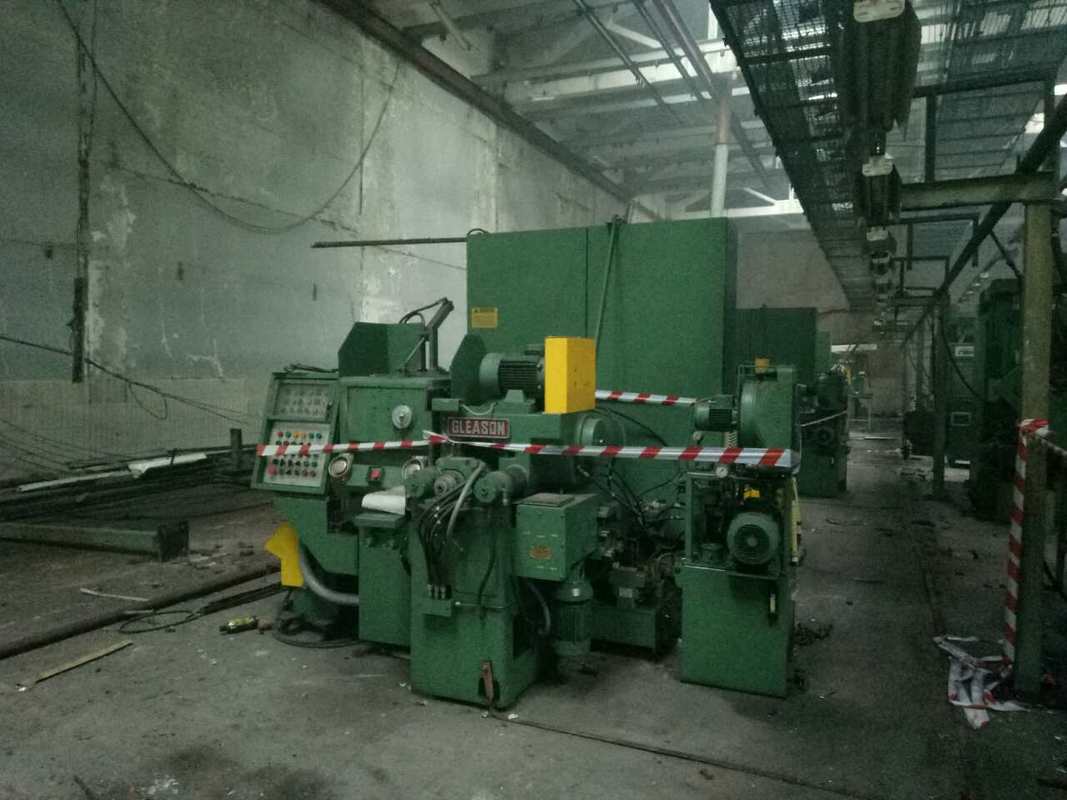

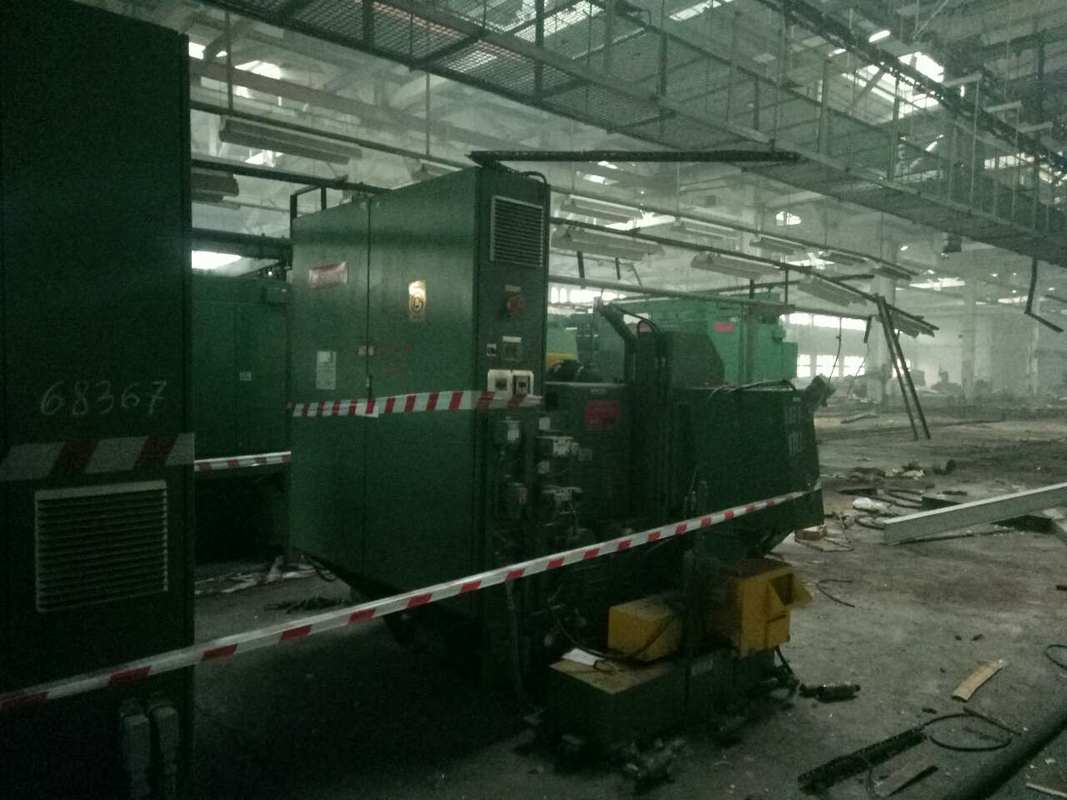

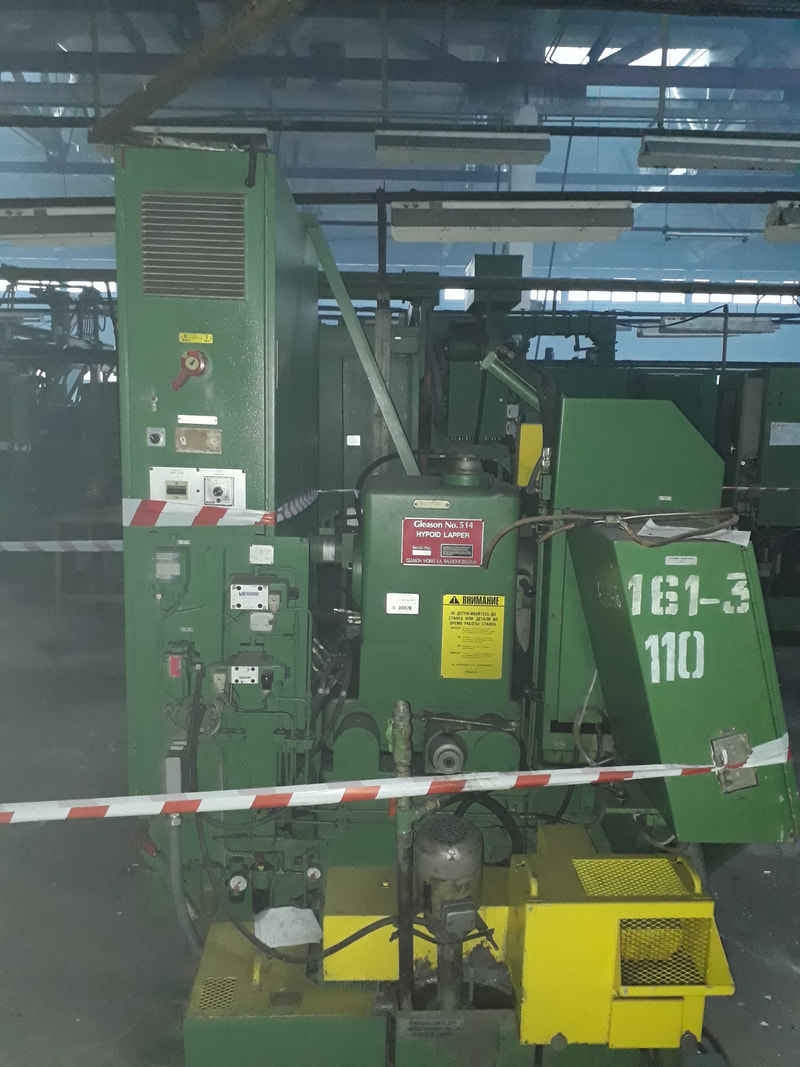

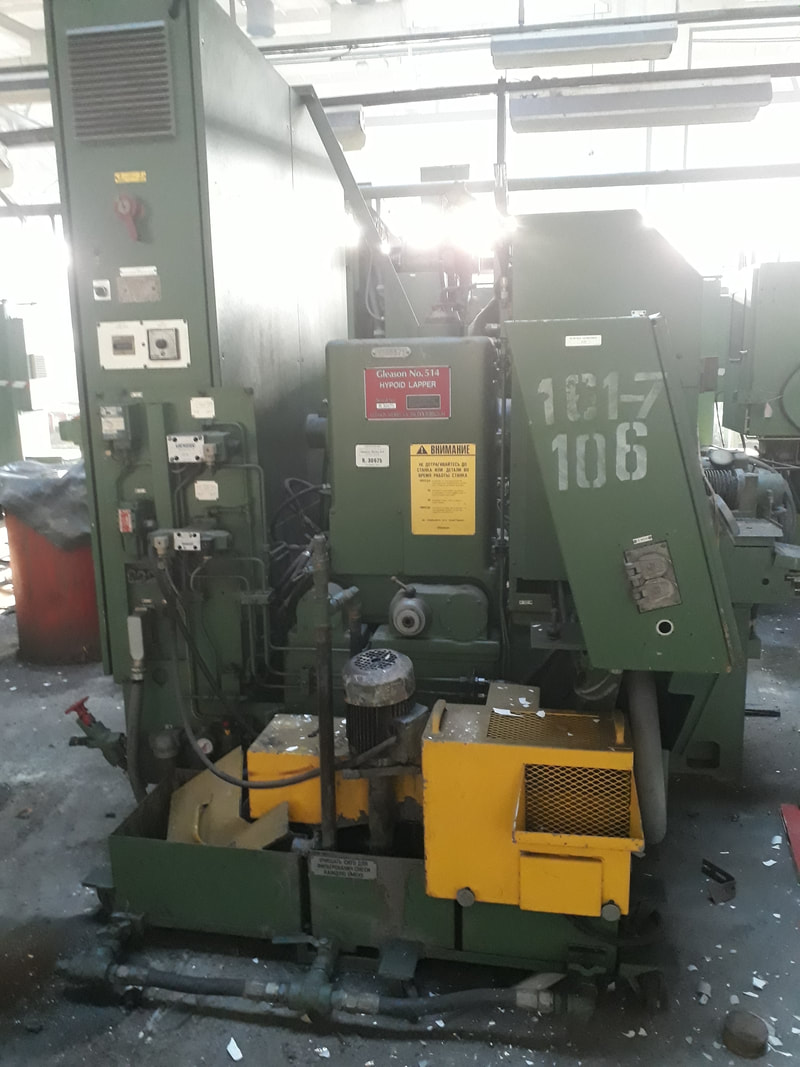

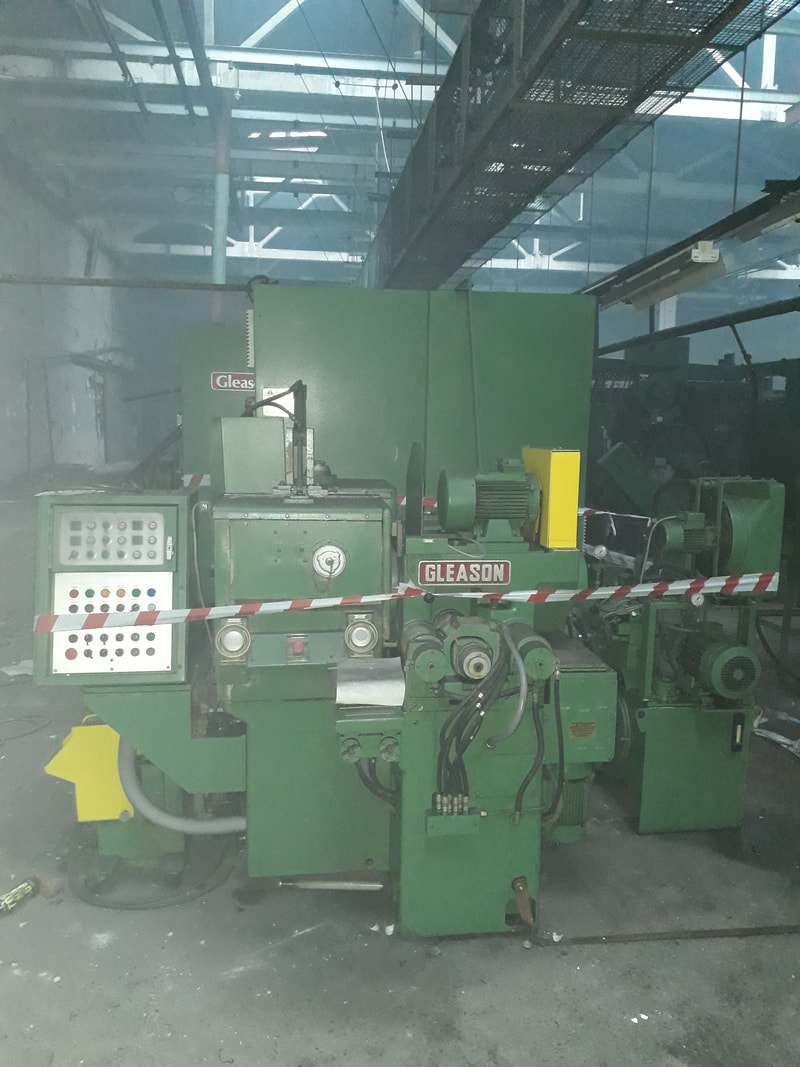

GLEASON 514 Gear Lappers

  • Contact the manager
  • Technical Specifications
  • Max. gear diameter: 266 mm
    Max. gearwheel diameter: 152 mm
    Min. distance between gearwheel spindle axis and gear spindle end: 114 mm
    Max. distance between gearwheel spindle axis and gear spindle end: 178 mm
    Min. distance between gear spindle axis and gearwheel spindle end: 152 mm
    Max. distance between gear spindle axis and gearwheel spindle end: 228 mm
    Max. gear spindle offset up or down over gearwheel spindle axis: 95 mm
    Gearwheel spindle:
    -Diameter of taper opening: 100 mm
    -Conicity for 1 feet: 15 mm
    -Cone depth: 76 mm
    -Diameter of opening in spindle: 63 mm
    Gear spindle:
    -Diameter of taper opening: 58 mm
    -Conicity for 1 feet: 13 mm
    -Cone depth: 76 mm
    -Diameter of opening in spindle: 55 mm
    Main electric motor: 5 HP 1500 rpm (50 Hz)

GLEASON 514 Gear Lappers
