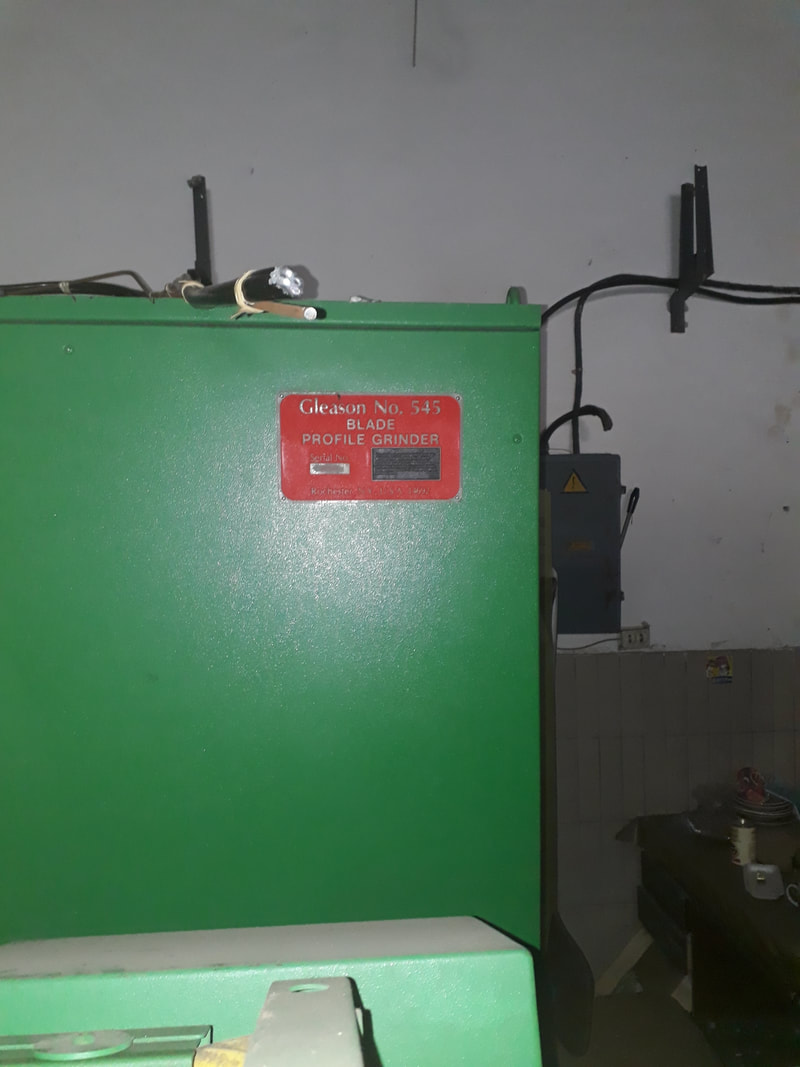

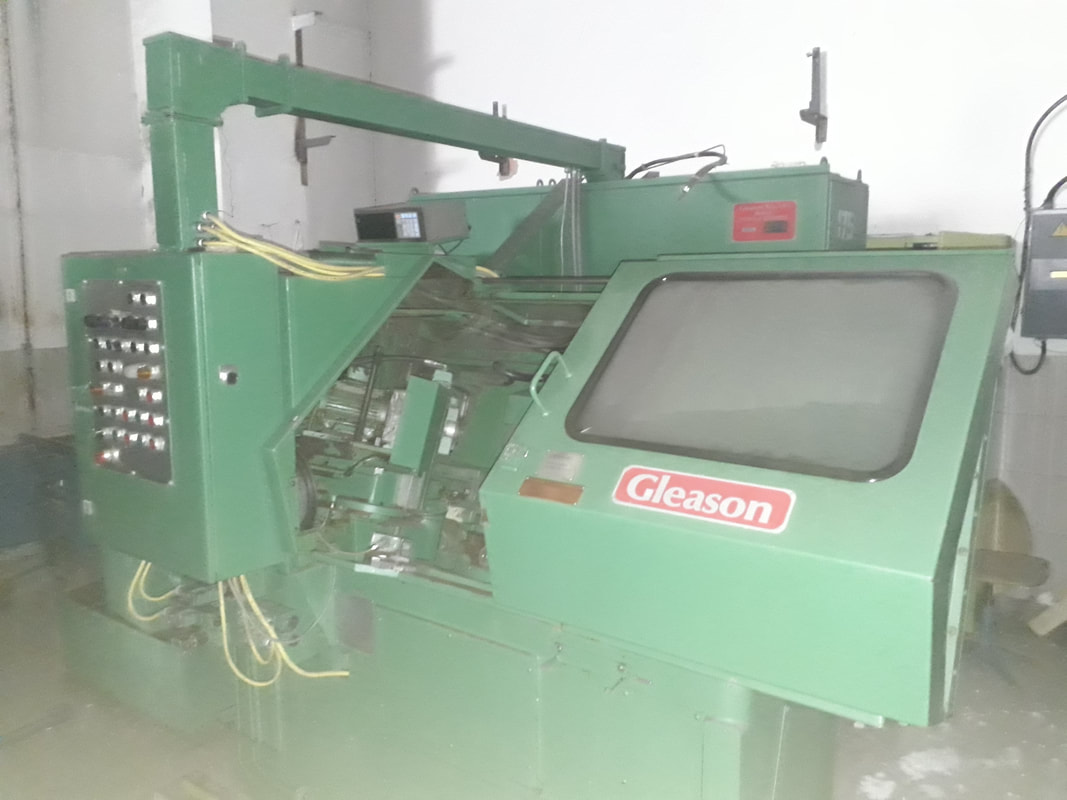

Gear machine GLEASON 545

  • Contact the manager
  • Technical Specifications
  • Blades for RSR cutters Roughing or Completing diameter: mm. 127 (5 «) in mm. 457 (18 «)
    Grinding wheel speed: 5500 SFPM (1676 m / min.)
    piece spindle spindle speed: 50 revolutions / min.
    Grinding wheel motor:
    60 Hz: 5 HP, 1800 rev / min.
    50 Hz: 5 HP, 1500 rev / min.
    pump motor indraulica:
    60 Hz: 5 HP, 1200 rpm / min.
    50 Hz: 5 HP, 1000 rev / min.
    Coolant pump motor:
    60 Hz: 2 HP, 3600 rev / min.
    50 Hz: 2 HP, 3000 turns / min.
    Wheel motor progress: 1/3 HP
    Collector of vapors and fumes:
    60 Hz: 1/3 HP, 3600 rev / min.
    50 Hz: 1/3 HP, 3000 turns / min.
    Overall dimensions: mm. 2210×2921 (87 «x115»)
    Height: mm. 2159 (85 «)
    Weight kg. 4536 (10.000 lbs.)

Gear machine GLEASON 545
