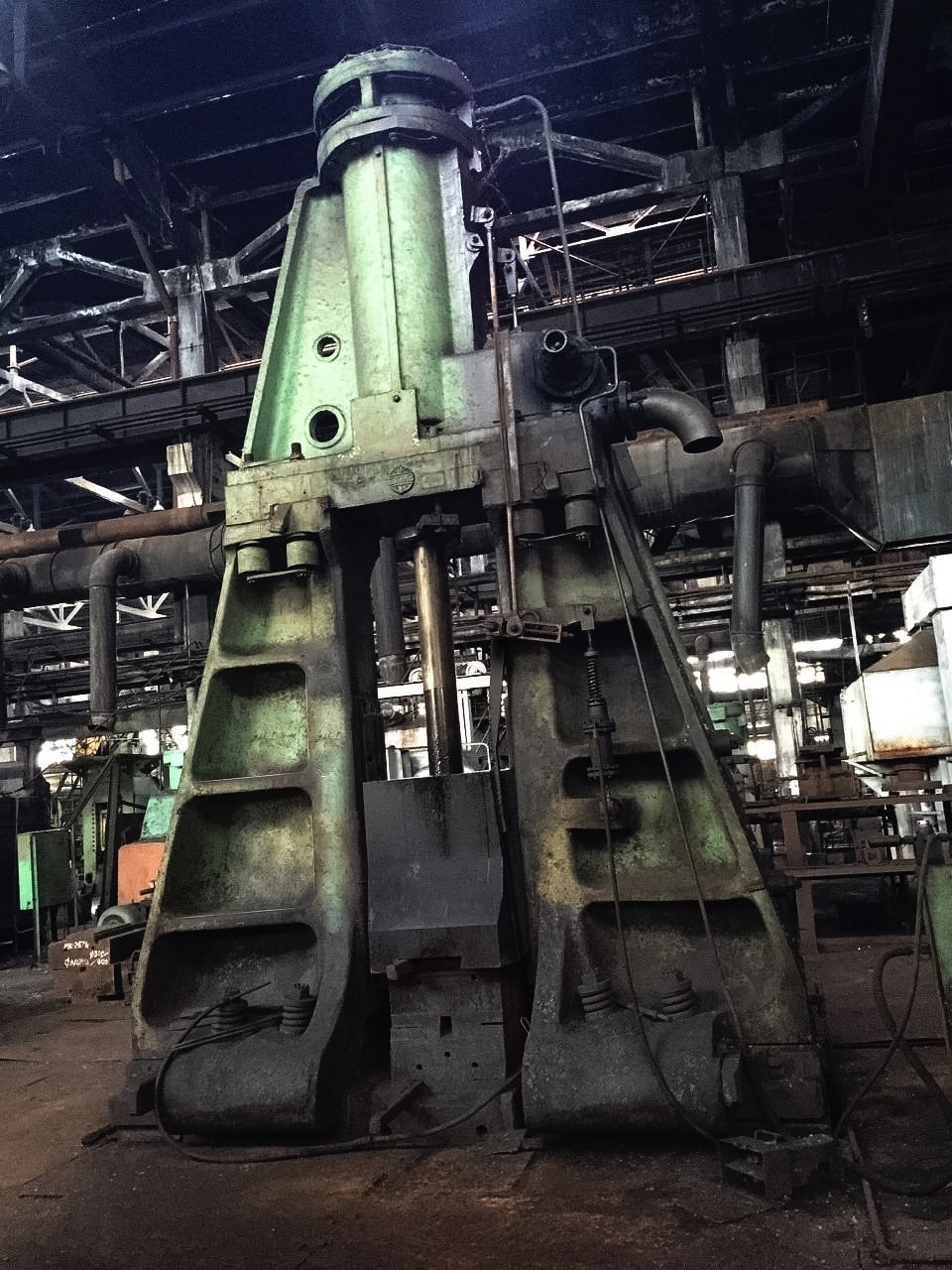

Forging hammer MA2147 5000kg

  • Condition
  • Excellent condition. Full retrofit of mechanical parts.

  • Technical Specifications
  • Nominal weight of dropping parts 5000 kg
    Actual mass of dropping parts without the Upper tool 5080 kg
    Effective kinetic energy of dropping parts at Full consecutive blows 125 kJ
    Number of strikes per min 50
    Max course of the hammer block 1300 mm
    Min height of tools without shanks 400 mm
    Distance between columns 800 mm
    Length of the hammer block (at direction, Perpendicular to hammer front) 950 mm
    Length of the die holder (at direction, Perpendicular to hammer front) 1180 mm
    Steam pressure before an admission to The cylinder 7.. 9 atm
    Nominal weight of the upper tool 500 kg
    Max weight of the upper tool 1500 kg
    Max admitted temperature of steam degr. C 200
    Overall dimensions 3700x2000x8770 mm
    Weight 140364 kg
