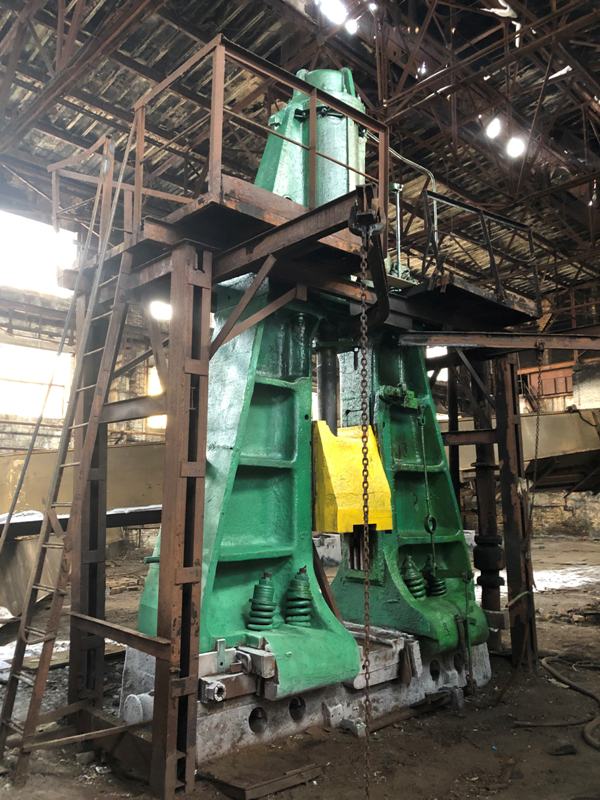

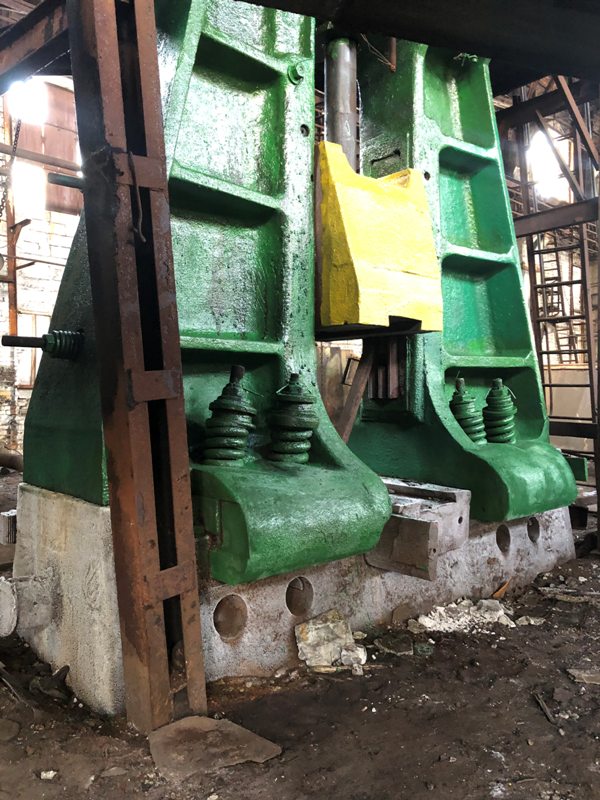

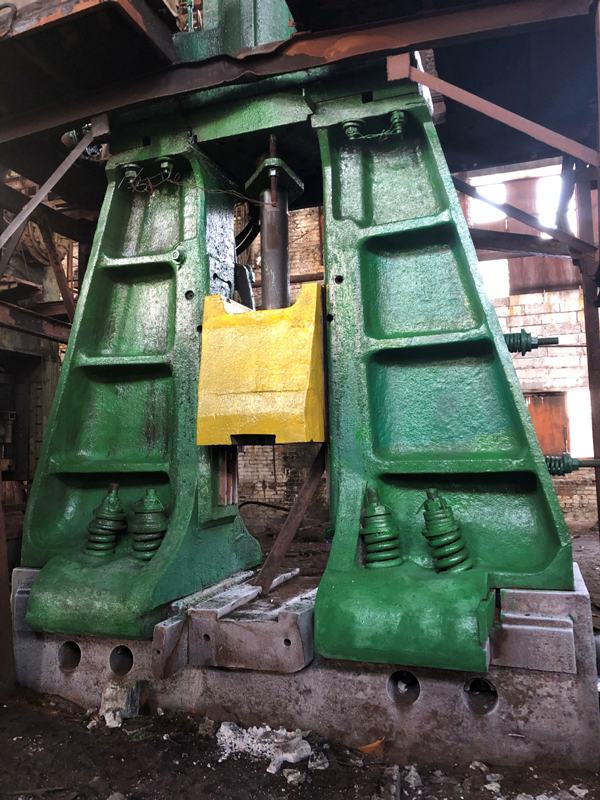

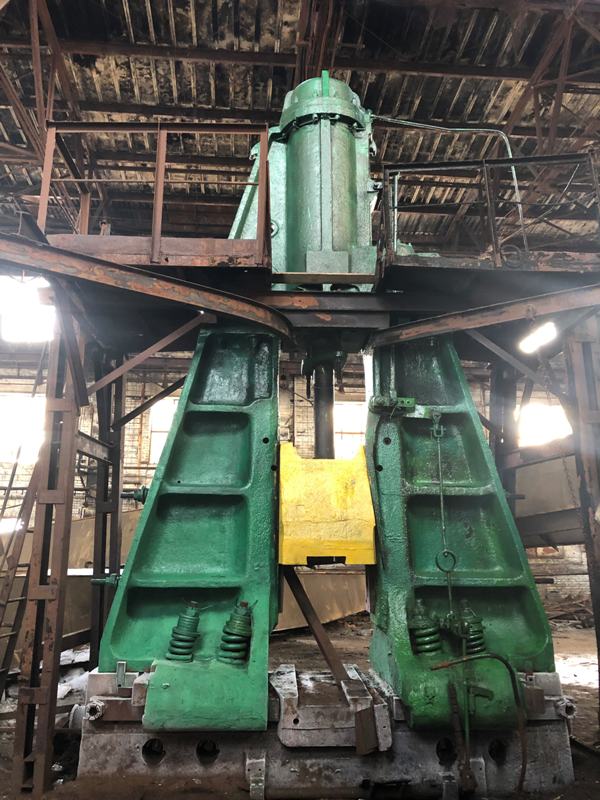

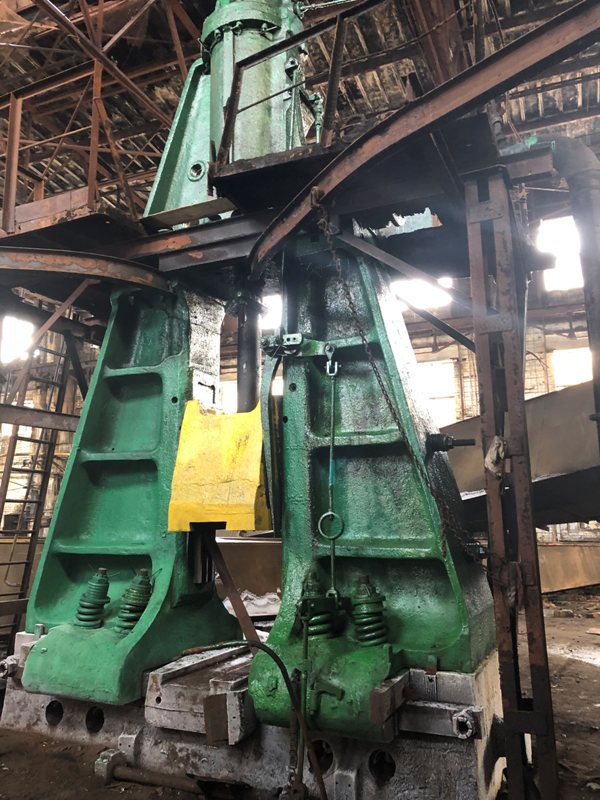

Forging hammer KRAMATORSK 17KP 5 TON

  • Condition
  • Good Working.

  • Watch video
  • Technical Specifications
  • Nominal weight of dropping parts 5000 kg
    Actual mass of dropping parts without the Upper tool 5080 kg
    Effective kinetic energy of dropping parts at Full consecutive blows 125 kJ
    Number of strikes per min 50
    Max course of the hammer block 1300 mm
    Min height of tools without shanks 400 mm
    Distance between columns 800 mm
    Length of the hammer block (at direction, Perpendicular to hammer front) 950 mm
    Length of the die holder (at direction, Perpendicular to hammer front) 1180 mm
    Weight 139 ton
  • Additional Information
  • Forging hammer KRAMATORSK 17KP are used in the drop forging to form the metal between two dies. The first half of the die is attached to the anvil and the second part to the hammer. The material is placed in the lower die and then hammered with the upper one until the hot metal flows in all directions, filling the die cavity. Drop forging is the first industrial process which had been developed for closed die forging, before the introduction of presses.
