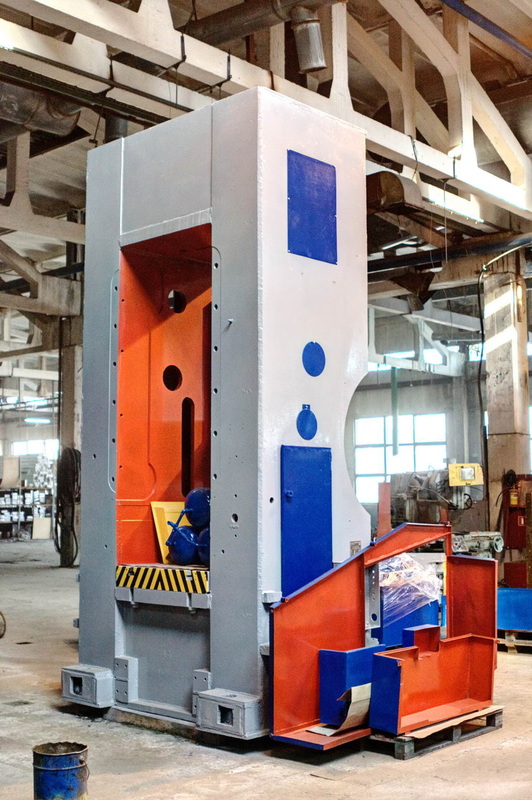

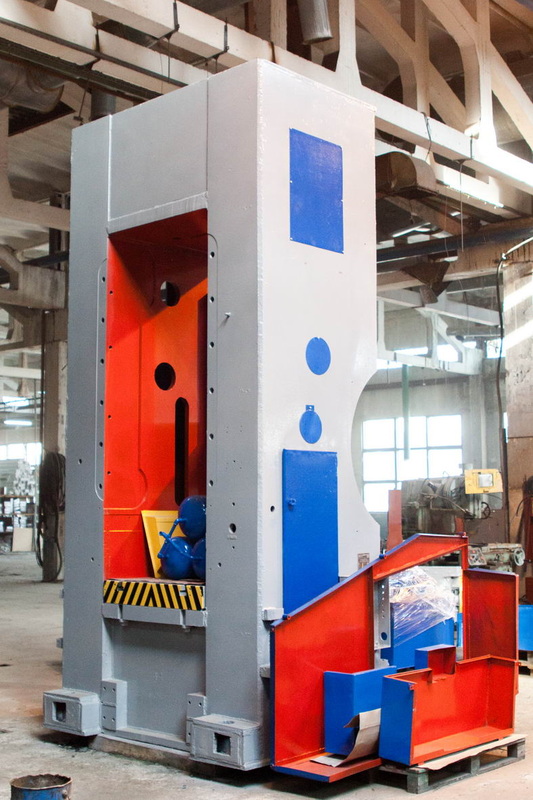

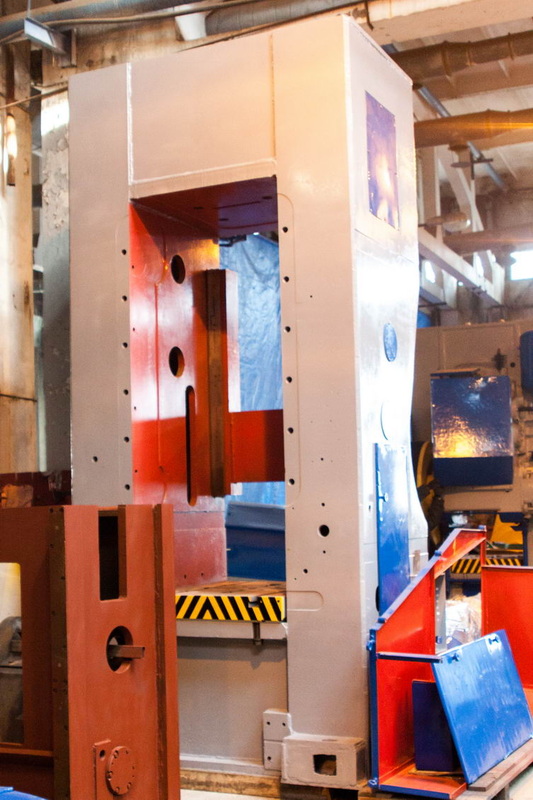

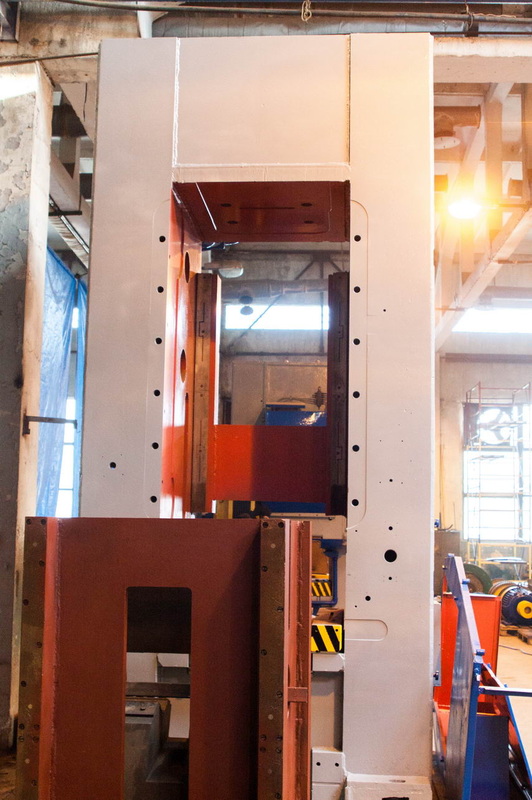

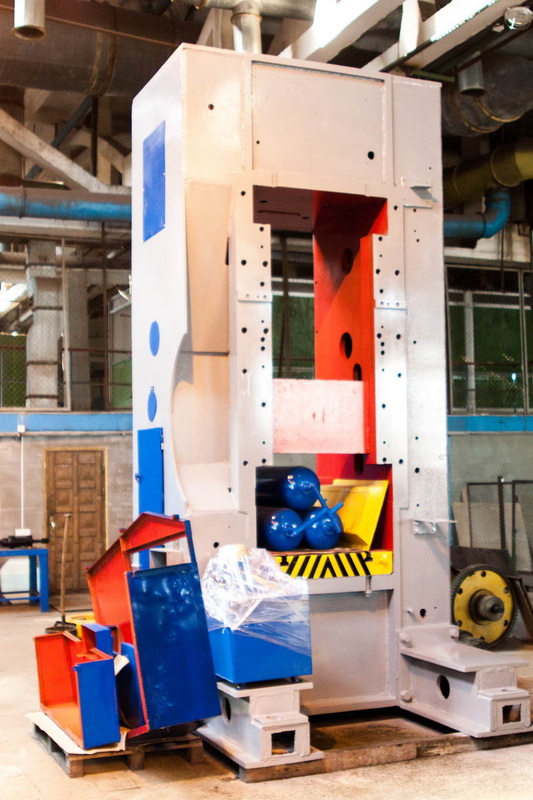

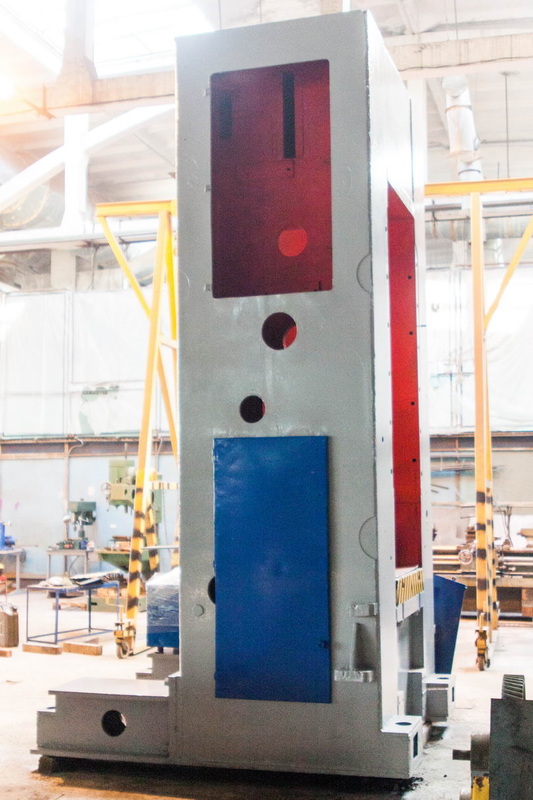

Extrusion сoining presses АС-5100 (ANALOG OF K0036) 400T

  • Condition

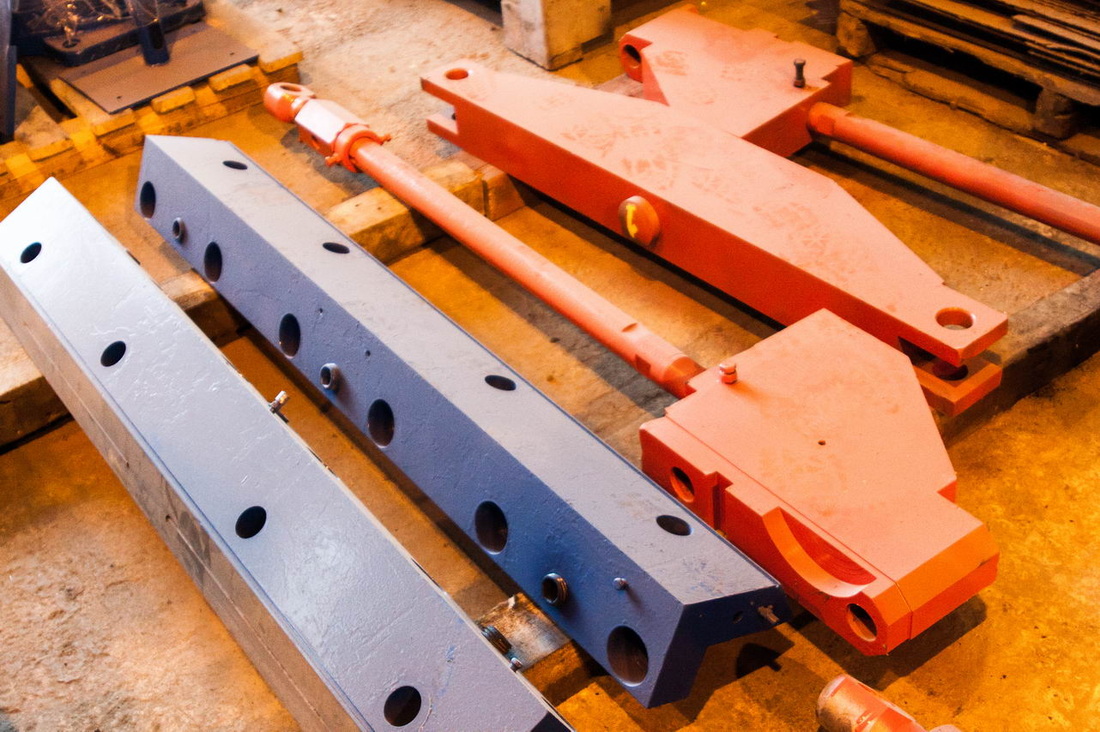

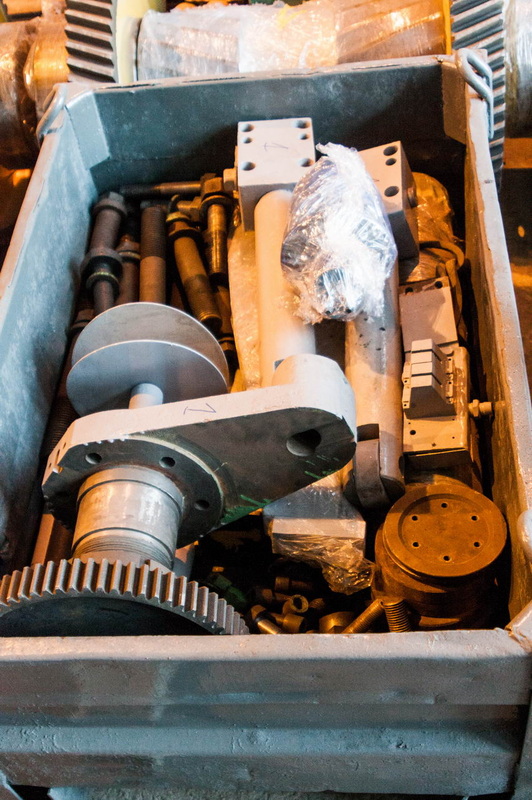

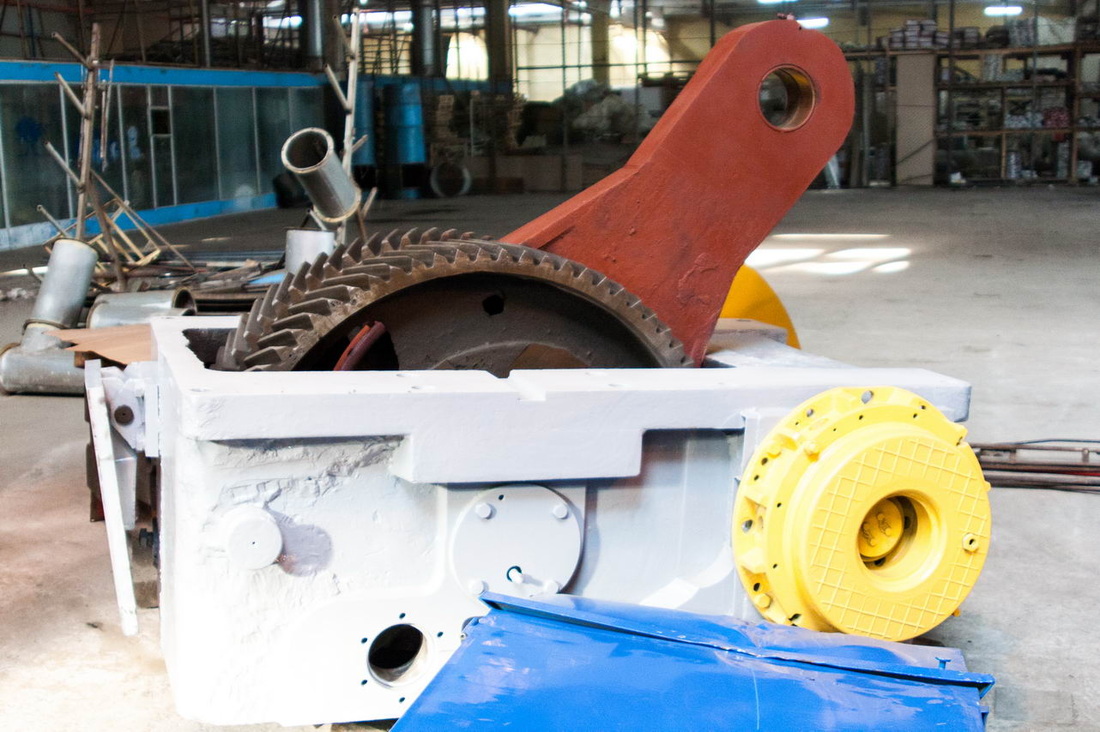

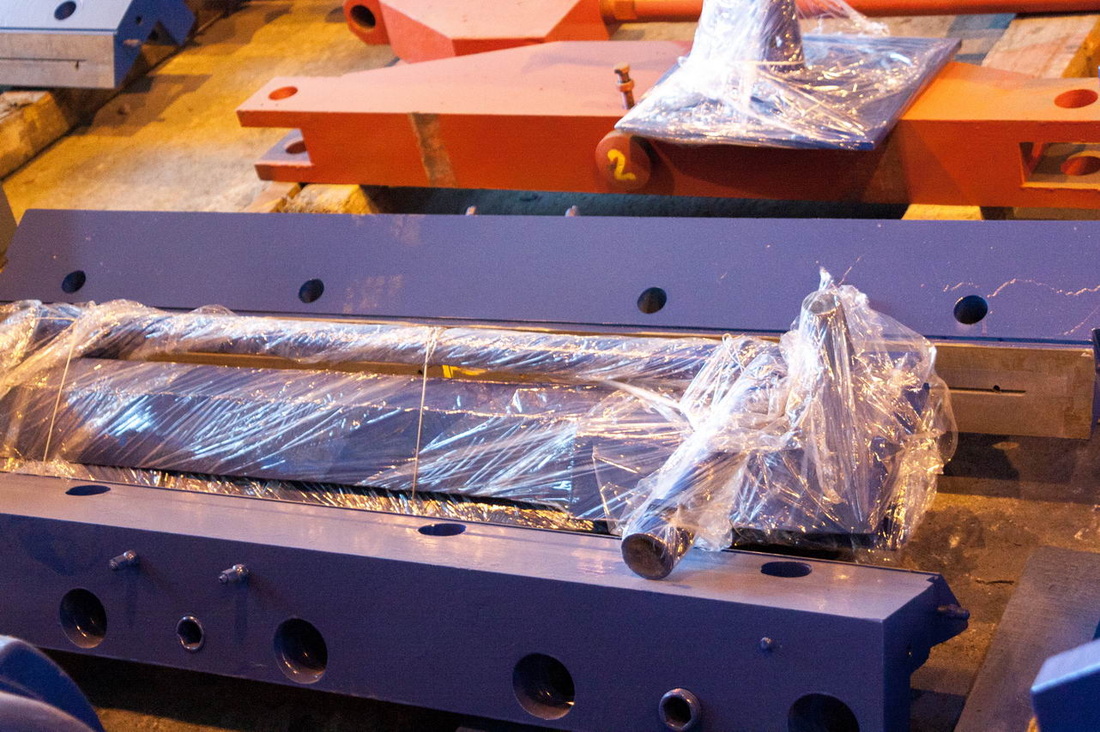

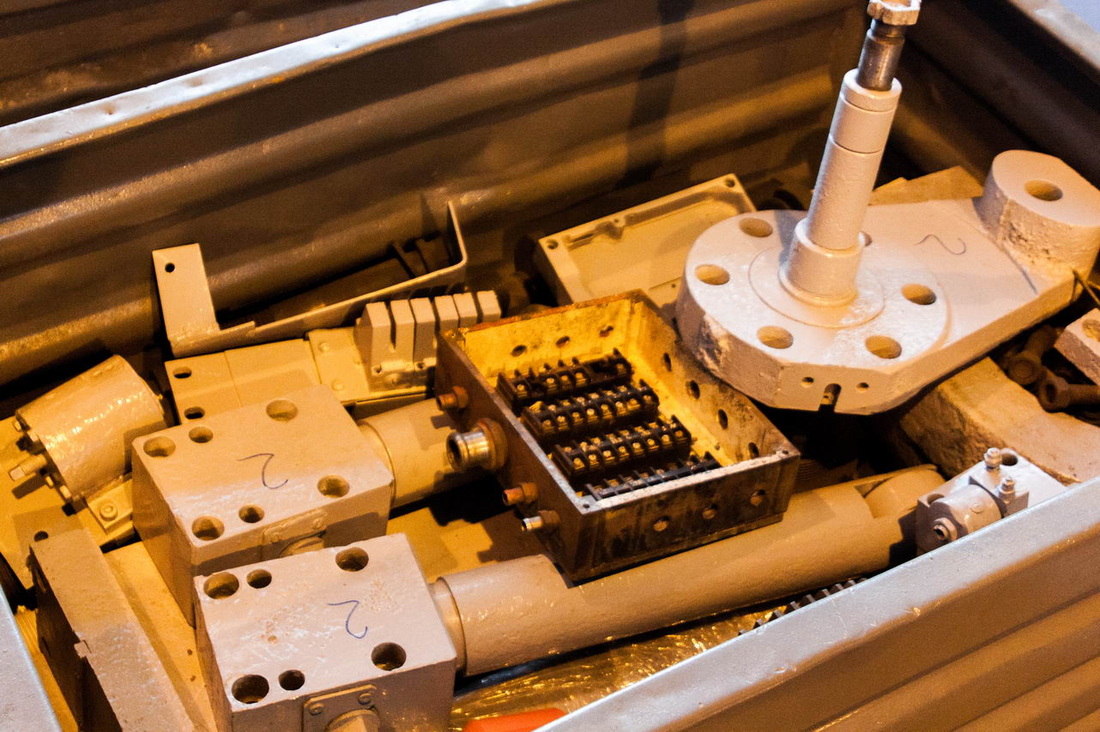

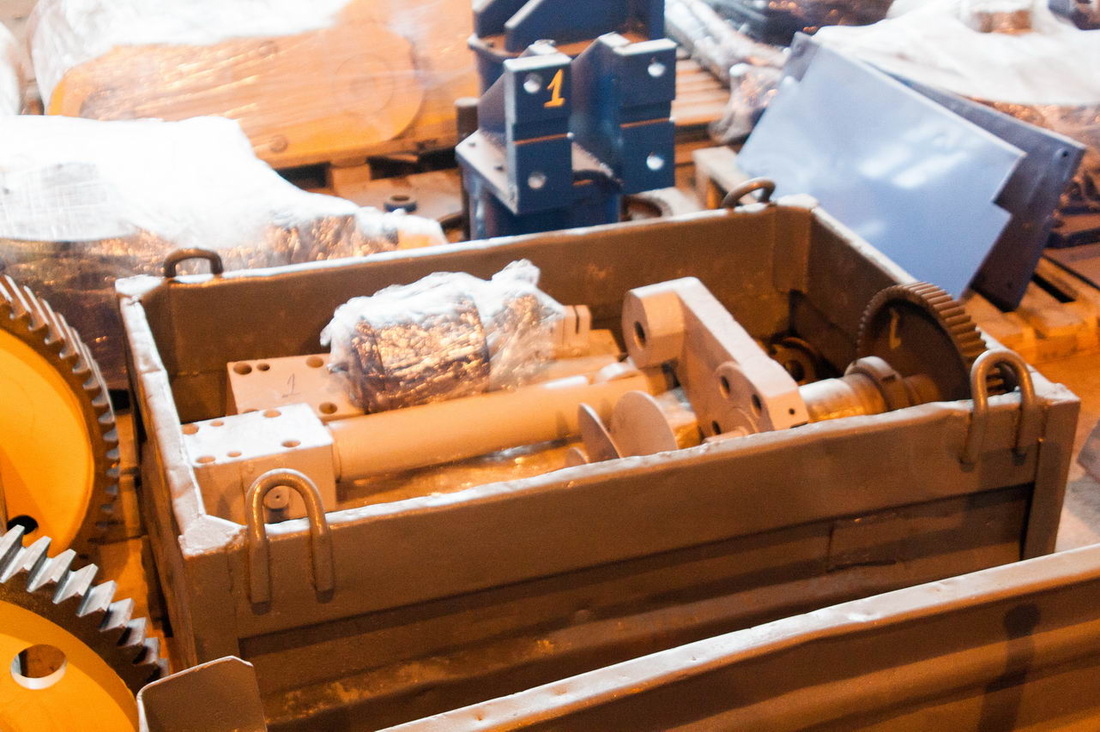

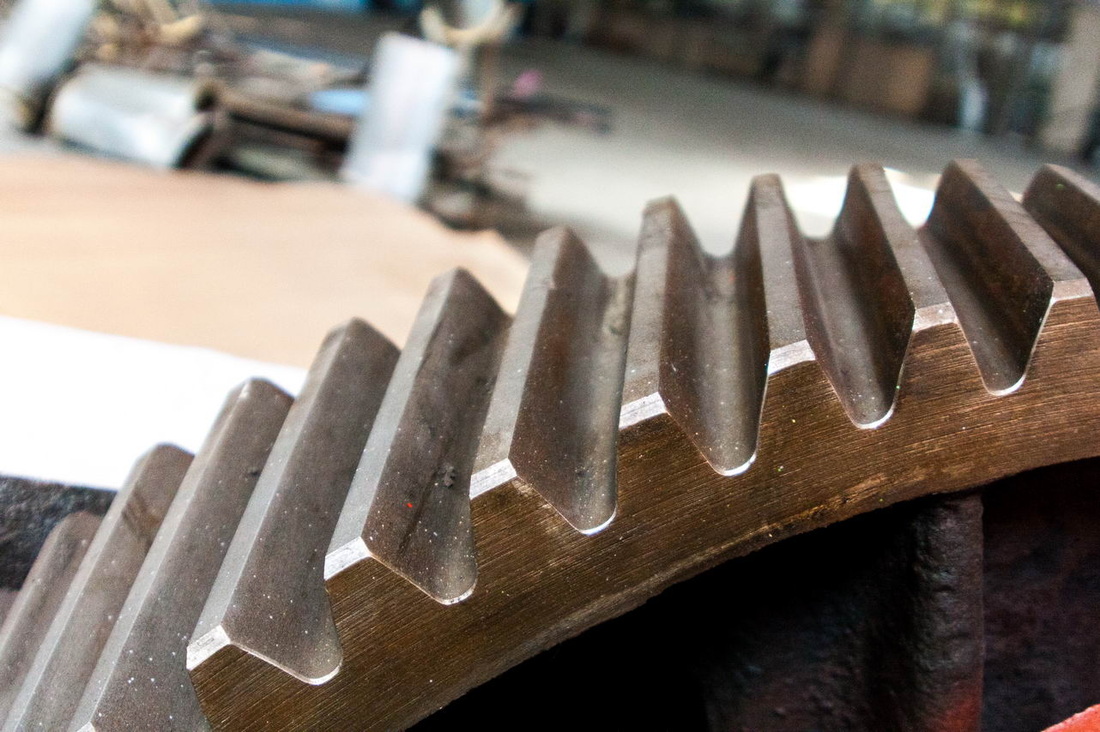

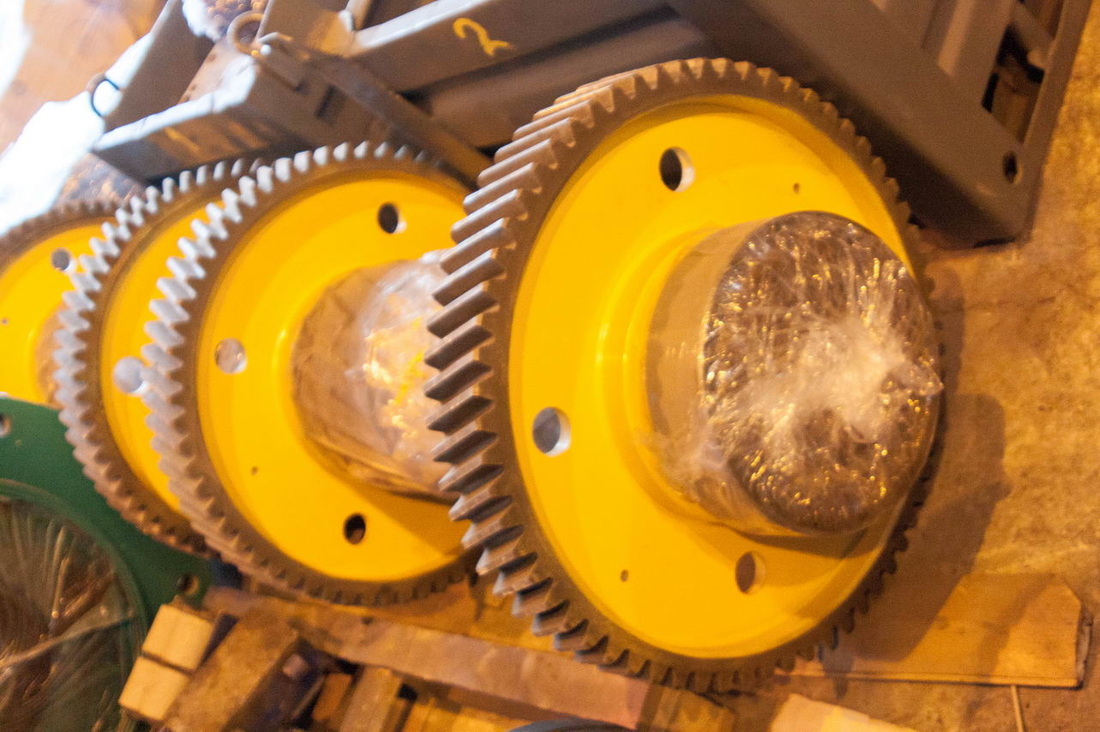

  • Excellent Working , Fully retrofit by mechanical part, Mechanical retrofit in Year 2015 .

  • Technical Specifications
  • 1. Capacity of press, KN 4000
    2. Constant press stroke, mm 230
    3. Frequency of continuous press strokes per minute 25
    4. Number of single press strokes, per minute 16
    5. Press stroke path till its extreme position,
    where it develops capacity of press, mm 36
    6. Distance between die bed and press slide in
    its lower position with up
    position of adjustment, mm 590
    7. Dimension of distance adjustment between the bed
    and press slide, mm 16
    8. Proportions of bed, mm:
    from left to right 1000
    from the front to back 1250
    9. Proportions of press slide, mm:
    from left to right 900
    from the front to back 940
    10. Thickness of die bed, mm 160
    11. Overhead ejection stroke, mm 16
    12. Overhead ejection force, kN 160
    13. Inferior ejection stroke, mm 140
    14. Inferior ejection force, kN 500
    15. Rigidity, kN 3600
    16. Overall dimensions of press, mm
    from left to right 2270
    from the front to back 2600
    height 4750
    17. Height of press above the floor, mm 4400
    18. Mass of press without base and electric equipment, kg 37450
    19. Kind of current of circuit feeder alternating, 3-phase
    20. Current frequency, Hz 50
    21. Voltage, V 380
    22. Control circuit voltage, V
    alternating 110
    continuous 24
    23. Quantity of electric motors 3

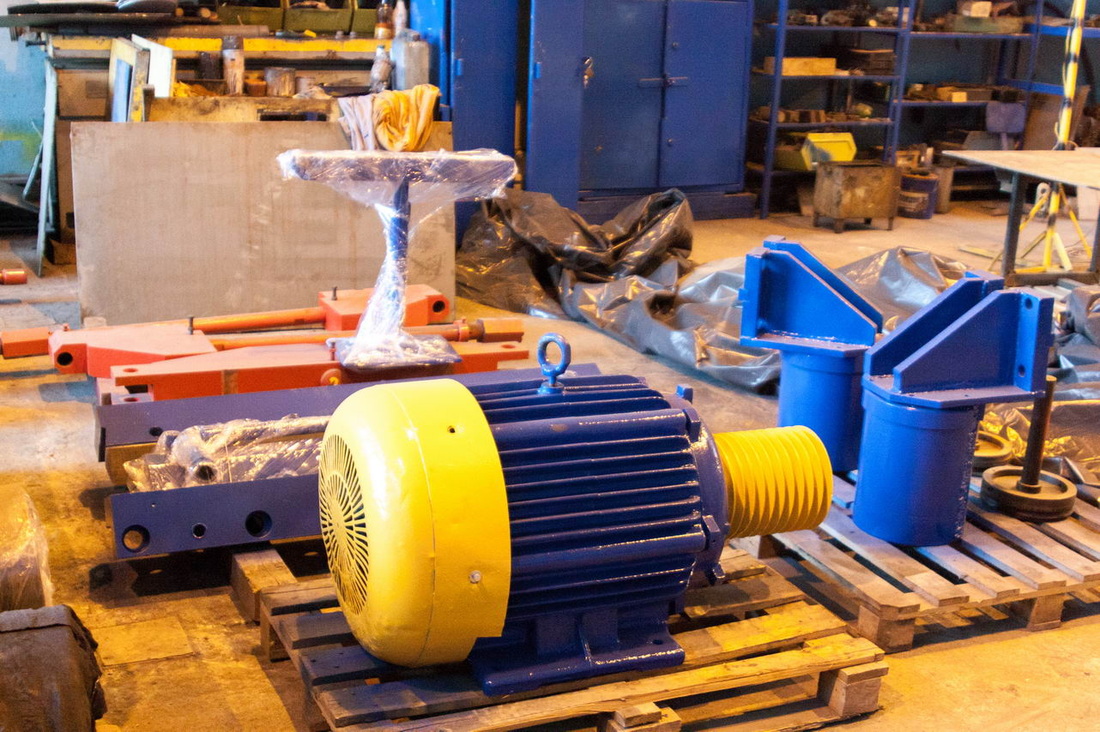

    24. Electric motor of main drive:
    power, kW 61
    number of revolutions per minute 1400
    25. Noise level, dB 80

Extrusion сoining presses АС-5100 (ANALOG OF K0036) 400T
