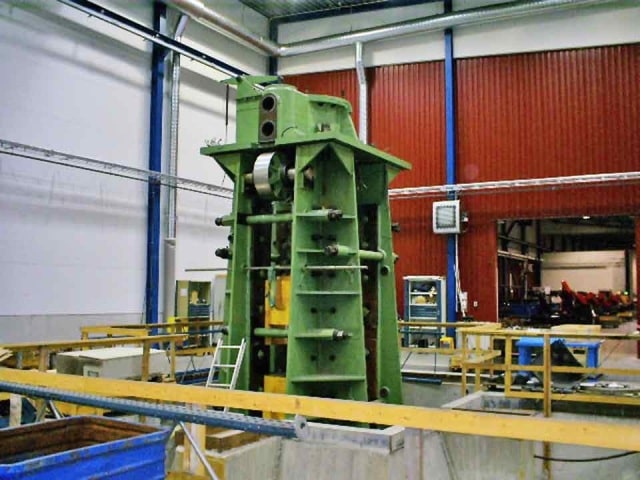

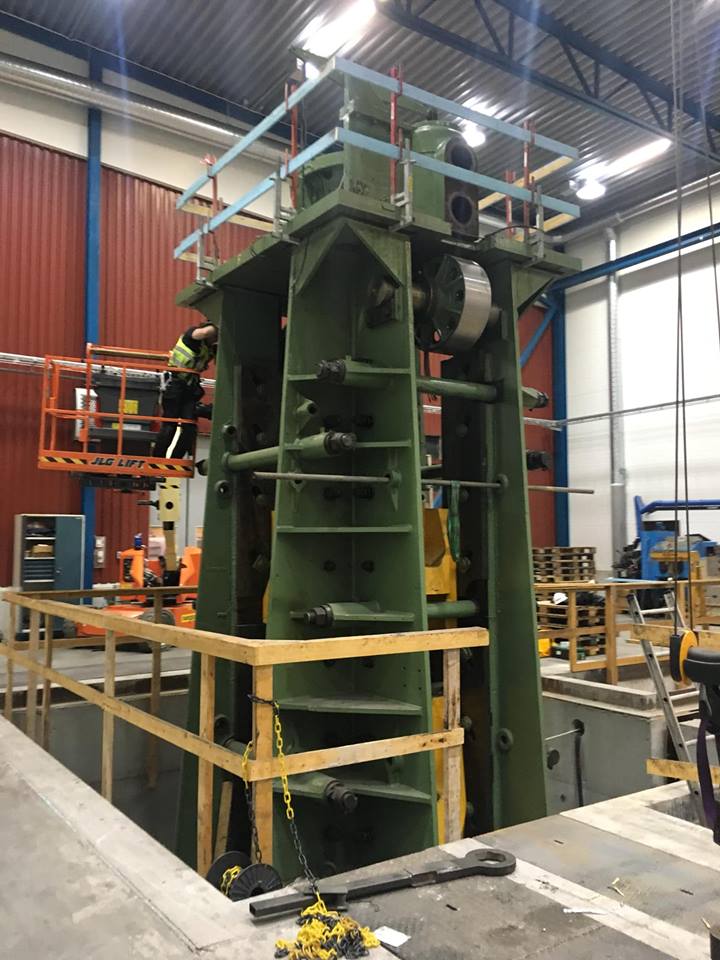

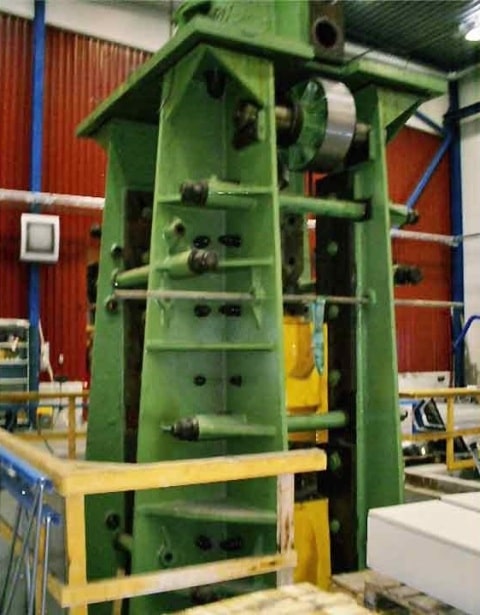

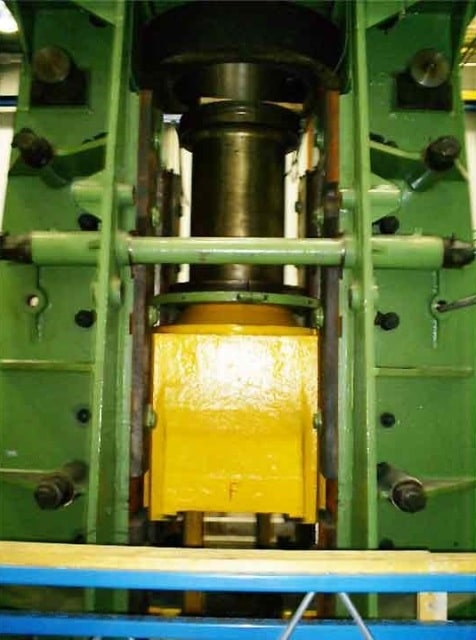

Counterblow hammer Beche DGH 25 ton

  • Condition
  • Condition: perfect, after full retrofit !!!

  • Watch video
  • Technical Specifications
  • Energy of blow 25000 kgs
    Stroke 1200 mm
    Distance between slides 1070 mm
    Ram width 1050 mm
    Ram length 1500 mm
    Weight 152 ton
    Air Consumption Per Full Blow 4.5 Cubic Mtr
    Compressor Size Cold Air 32.5 Cubic Mtr
    Compressor Size Heated Air 220ºC 20.0 Cubic Mtr
    Volume of Air Receiver 25.5 Cubic Mtr
  • Additional Information
  • BÊCHÉ counterblow hammers are predominantly used for manufacturing large and ultra-large forgings. The high impact energy and tonnage of the hammer dies, moving in opposite directions, permits precision forming of large forgings. Counterblow hammers with hydraulic drives are particularly well suited to the medium tonnage range.

    Counterblow hammer Beche DGH 25 — in a counterblow machine both the hammer and anvil move and the workpiece is held between them. Here excess energy becomes recoil. This allows the machine to work horizontally and have a smaller base. Other advantages include less noise, heat and vibration.

Counterblow hammer Beche DGH 25 ton
Counterblow hammer Beche DGH 25 ton
  • Views in 3 days
    578
  • Offers price
    61

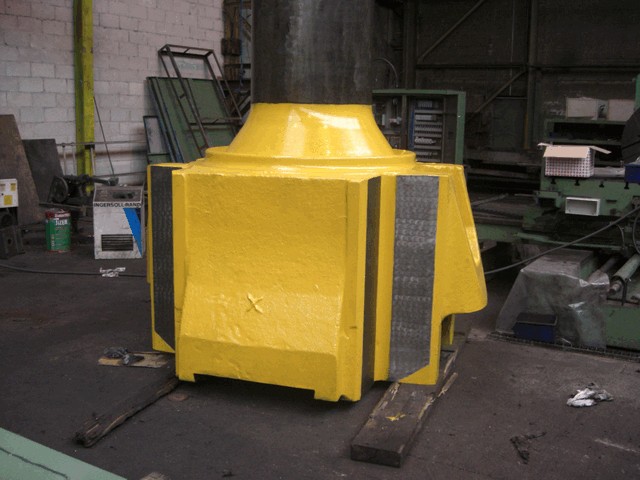

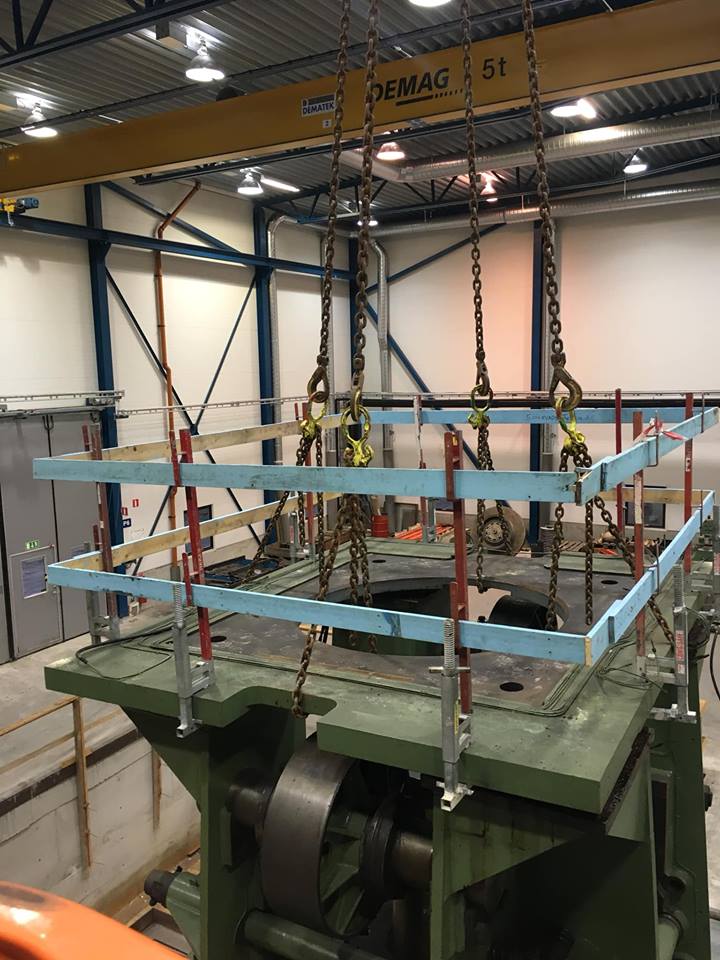

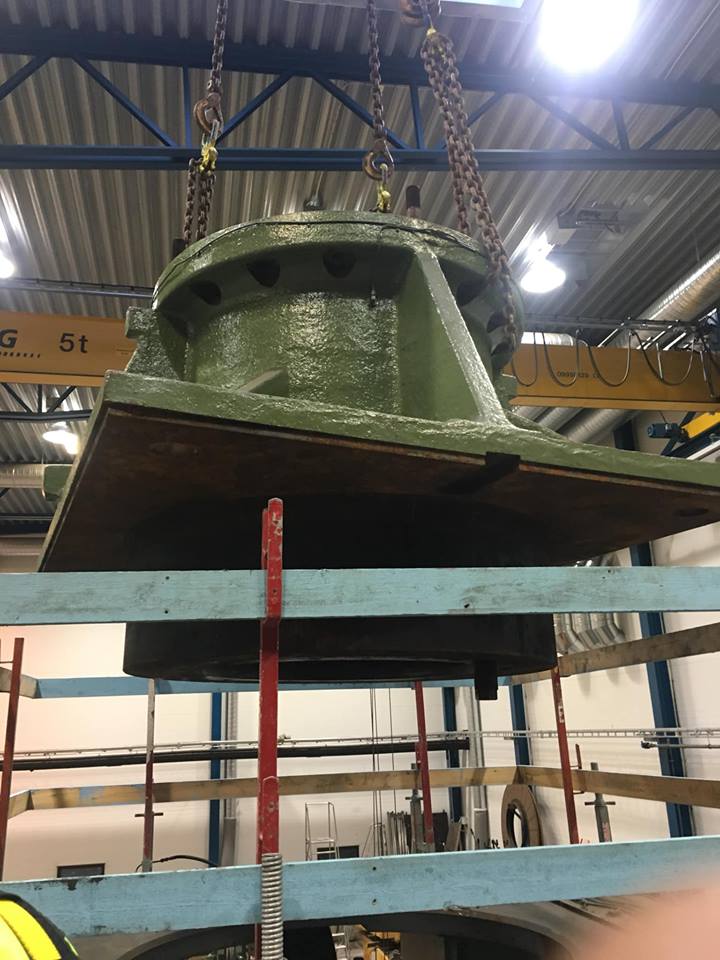

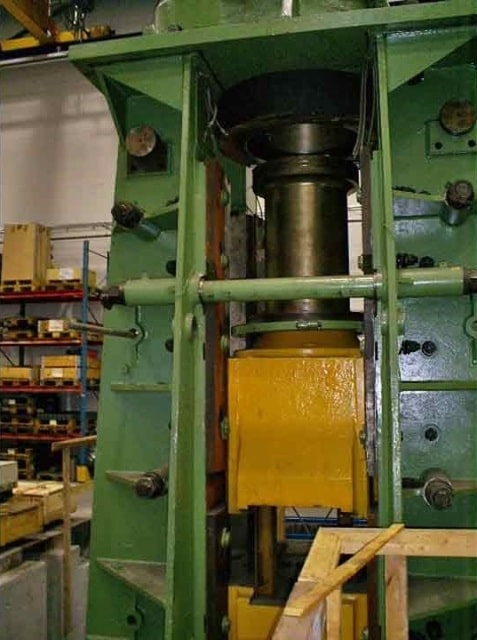

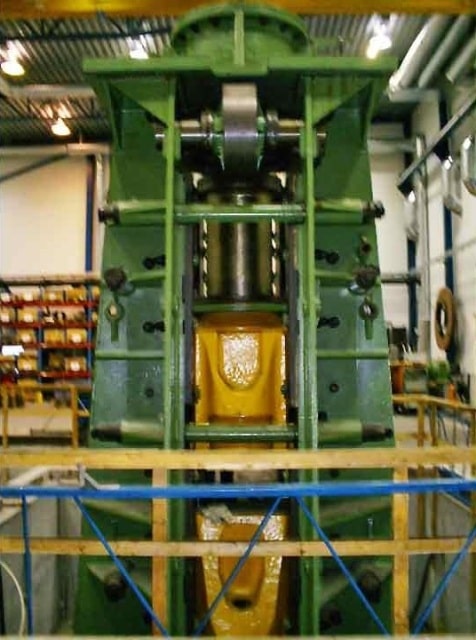

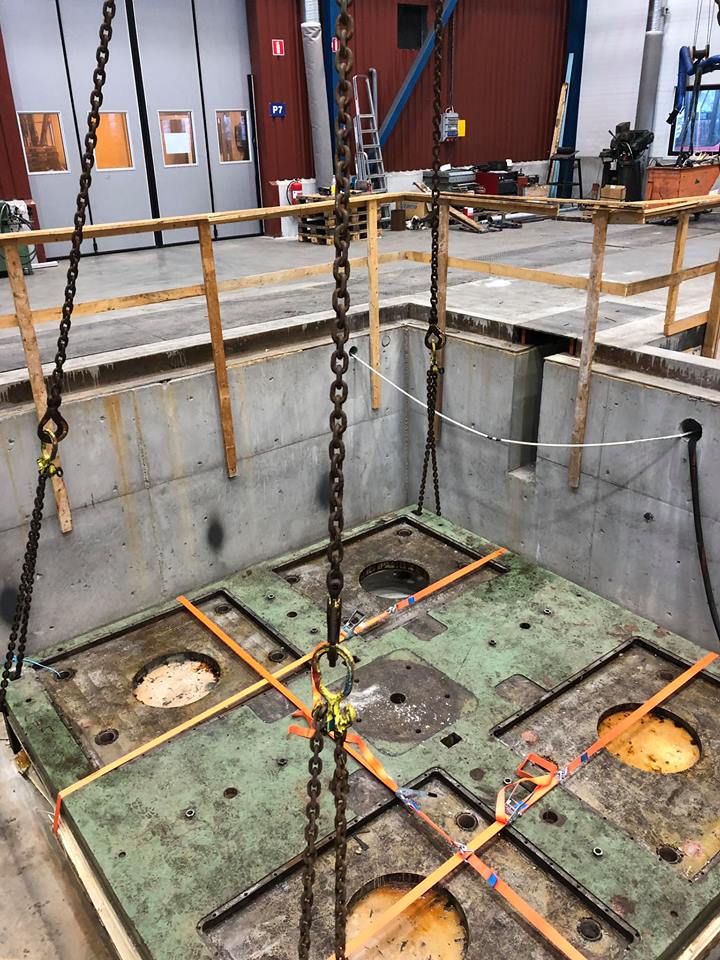

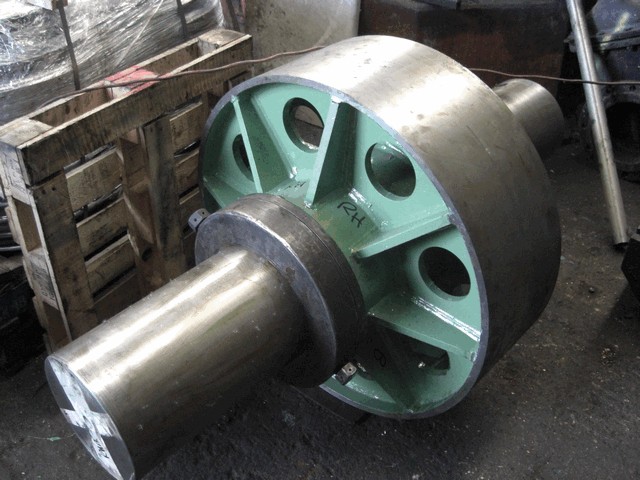

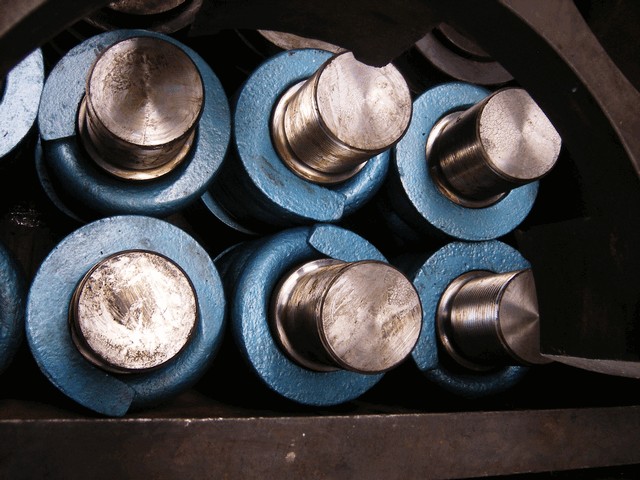

Photo - Counterblow hammer Beche DGH 25 ton
